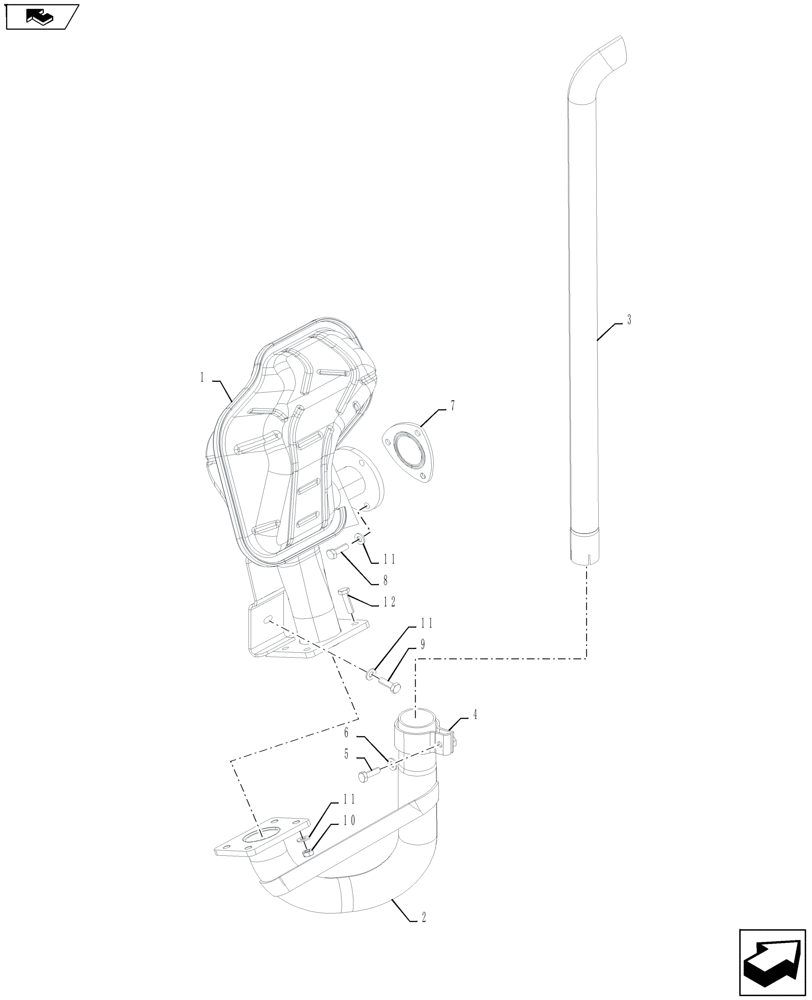

Запчасти Case IH FARMALL 65A (10.254.02[01]) - EXHAUST SYSTEM W/MUFFLER (10) - ENGINE

1

87498636

MUFFLER

Exhaust

1шт.

2

84259124

EXHAUST SYSTEM PIPE

Assy., Vertical

1шт.

3

84259142

EXHAUST SYSTEM PIPE

1шт.

4

82826687

CLAMP,54mm

Clamp Muffler

1шт.

5

16043931

SCREW,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

1шт.

6

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

M8 x 17 x 1.6

2шт.

7

84150416

GASKET

1шт.

8

16043621

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

9

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

10шт.

10

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

8шт.

11

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

8шт.

12

16043821

SCREW,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

ZND

12шт.

13

87394091

GASKET

Adapter to Pipe, Fits Between Ref. 1 and 2

1шт.
