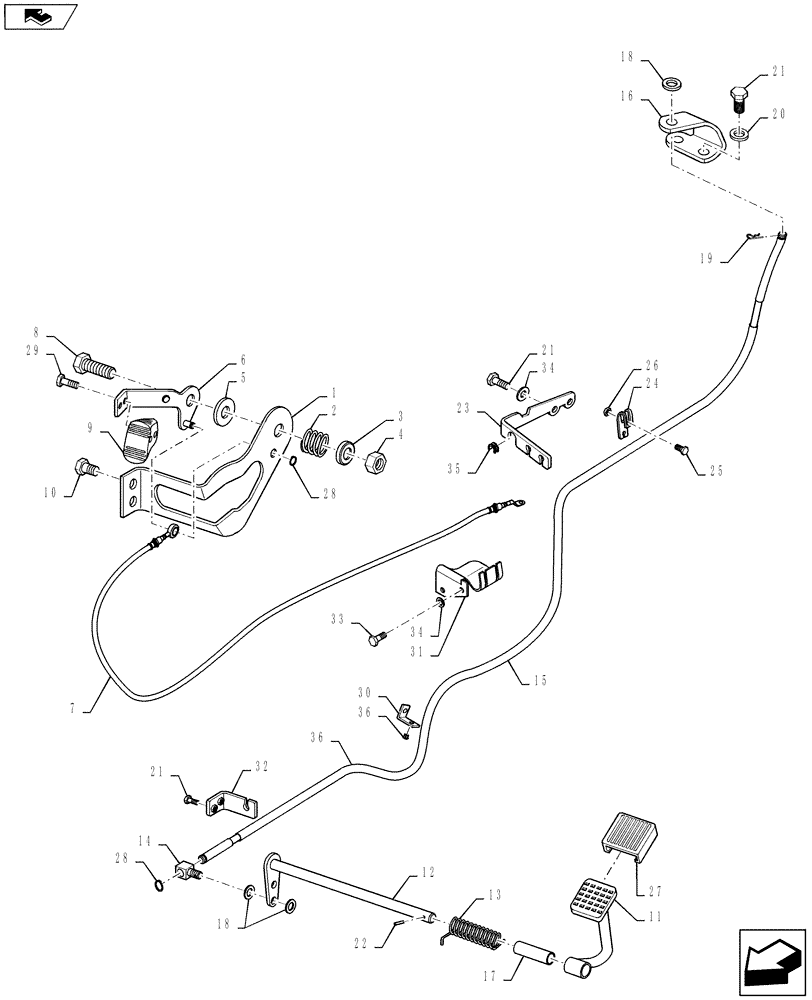

Запчасти Case IH FARMALL 65A (10.220.01) - THROTTLE CONTROL AND LINKAGE (10) - ENGINE

1

82825642

BRACKET

Hand Throttle Mtg.

1шт.

2

5118181

SPRING

1шт.

3

589743

CUP WASHER

Spring Retaining

1шт.

4

16105011

NUT,Hex, M12 x 1.25, Cl 8

Self Locking, M12 x 1.25

1шт.

5

5152998

WASHER,12.5mm ID x 34mm OD x 2mm Thk

Accelerator Control Lever Friction Plate

1шт.

6

84250314

LEVER

Hand Throttle

1шт.

7

84150383

CABLE

Hand Throttle, 65A & 75A, 1700mm Long

1шт.

7

84550813

CABLE,1680mm L

Hand Throttle, 65A & 75A, 1680mm Long

1шт.

8

15540721

SCREW,Hex, M12 x 1.25 x 45mm, Cl 8.8, Full Thd

1шт.

9

87736793

KNOB

Orange

1шт.

10

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

11

87324982

PEDAL

Throttle Assy.

1шт.

12

82826709

SHAFT

Assy., Throttle Lever

1шт.

13

82824398

SPRING

Return, Acc. Pedal

1шт.

14

82824305

BRACKET

Throttle Link

1шт.

15

84197747

CABLE

Throttle Control

1шт.

16

5127686

LEVER

FIP

1шт.

17

87307614

SPACER

Throttle

1шт.

18

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

2шт.

19

81813880

COTTER PIN,3/32" x 3/4"

1шт.

20

10516479

LOCK WASHER

2шт.

21

83926880

BOLT,Hex, M6 x 12mm

Hex., M6 x 12, 8.8

6шт.

22

82824379

PIN,4.4mm OD x 24mm L, Slotted

Roll

1шт.

23

84281325

BRACKET

Guide Link Throttle

1шт.

24

82824305

BRACKET

Hand Throttle

1шт.

25

10902621

SCREW,Hex, M6 x 25mm, Cl 8.8

1шт.

26

15896211

NUT,M6, Cl 8

1шт.

27

87530816

RUBBER PEDAL PAD

1шт.

28

11065376

SNAP RING,M5, Ext

1шт.

29

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

30

87308108

SUPPORT

1шт.

31

84150336

BRACKET

1шт.

32

84188767

BRACKET

Foot Throttle

1шт.

33

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

2шт.

34

10571579

LOCK WASHER,M6

5шт.

35

84259316

GROMMET

Fuel Tube

1шт.

36

5110087

BUSHING

Link, Engine Shutoff

2шт.
