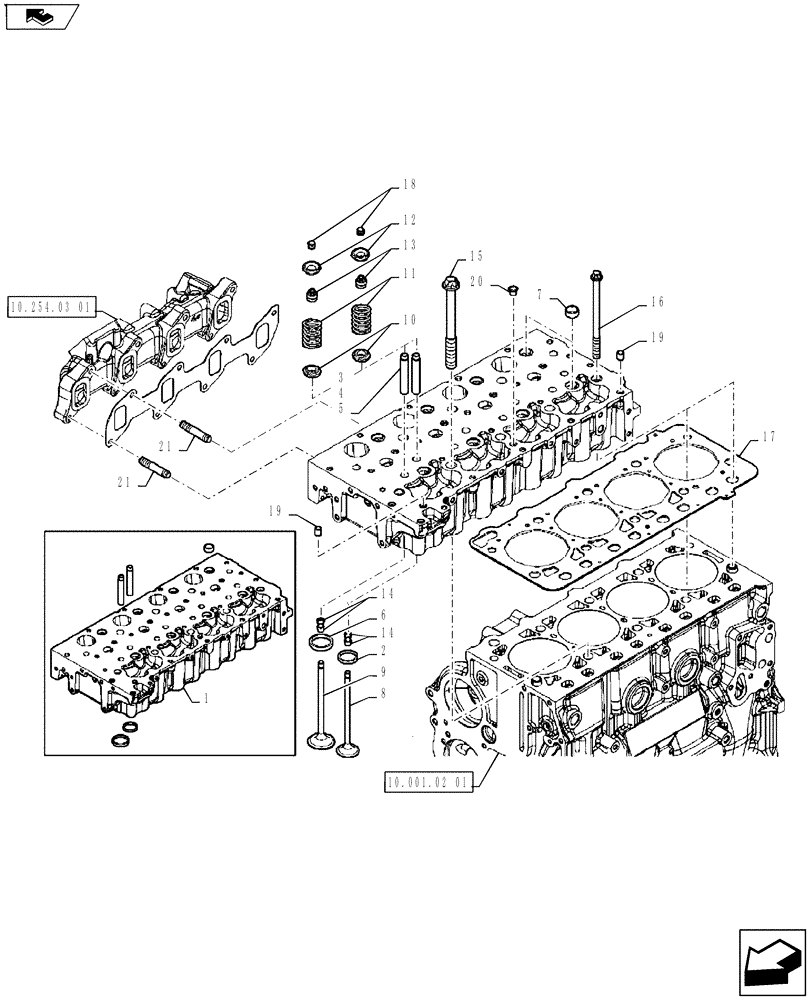

Запчасти Case IH FARMALL 65A (10.101.01[01]) - CYLINDER HEAD - VALVES (10) - ENGINE

1

504334193

CYLINDER HEAD

1шт.

2

504162949

VALVE SEAT

4шт.

3

4749397

VALVE GUIDE,Std

8шт.

4

4749398

VALVE GUIDE,+0.10

8шт.

5

4749399

VALVE GUIDE,+0.2

8шт.

6

504254094

VALVE SEAT

4шт.

7

16988301

PLUG,Lock, 20mm Dia

20

8шт.

8

504162958

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

9

504162959

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.

10

504178119

RETAINER CUP

8шт.

11

4812347

SPRING,Extension, 33mm OD x 44.6mm L

8шт.

12

4780558

CUP

8шт.

13

40101573

SEAL

8шт.

14

14196670

ROCKER ARM COTTER

7.85

16шт.

15

504081521

BOLT,M15 x 1.5 x 193mm

M15 x 1.5 x 193

6шт.

16

504081533

BOLT,M12 x 1.5 x 165mm

M12 x 1.5 x 165

4шт.

17

504190831

CYLINDER HEAD GASKET

1шт.

18

4838680

CAP

8шт.

19

99435557

DOWEL,8.50mm Dia

8.5

3шт.

20

17281481

O-RING,10.7mm ID x 2.6mm Width

10.7, SP = 2.6

1шт.

21

500380521

STUD,M5 x 12 x 45mm

M8 x 12 x 45

5шт.
