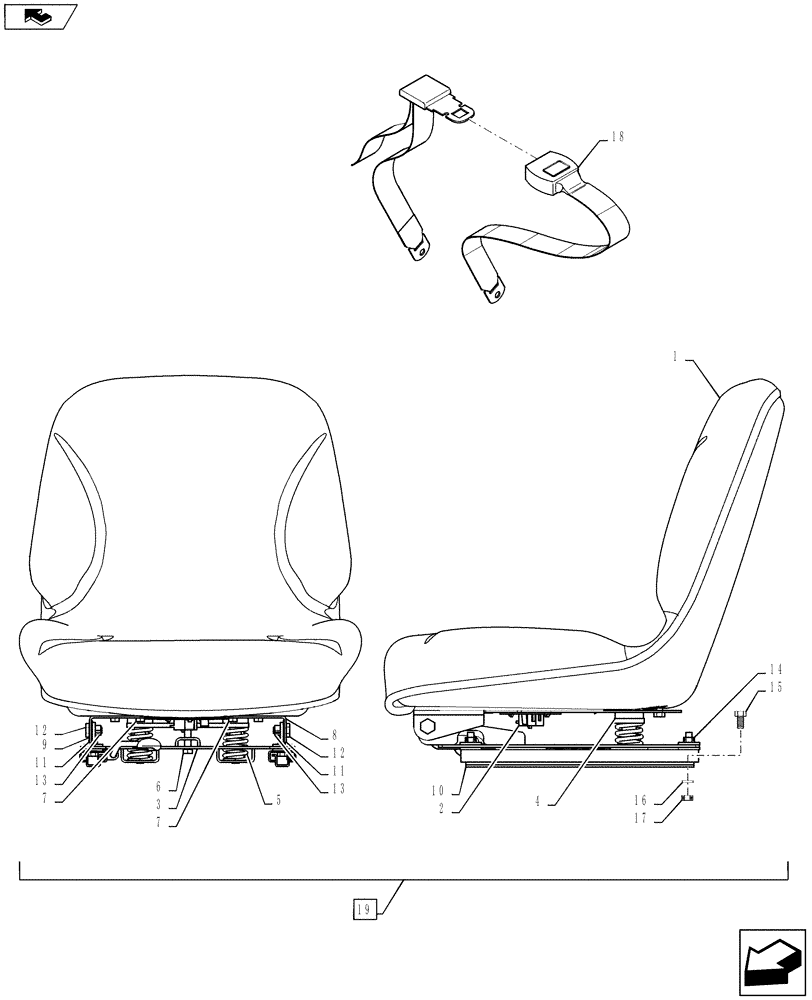

Запчасти Case IH FARMALL 65A (90.120.02) - SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87385236

SEAT

1шт.

2

87385234

SWITCH

Operator Presence

1шт.

3

87530595

SUSPENSION

1шт.

4

86400123

BUMPER

2шт.

5

86400124

SPRING

2шт.

6

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

7

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

8

87365968

BRACKET

1шт.

9

87365969

BRACKET

1шт.

10

87530597

SLIDE GUIDE

1шт.

11

87363666

SPACER

2шт.

12

86560540

BOLT

2шт.

13

88902

NUT,3/8"-16

2шт.

14

280736

NUT,5/16" - 18, Gr C

4шт.

15

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

Alternate Part 14306521

4шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Alternate Part 10571779

4шт.

17

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

Alternate Part 16100811

4шт.

18

86530933

SAFETY BELT ,48.00 mm W

1шт.

19

87385236

SEAT

Includes: Ref. 1-18

1шт.
