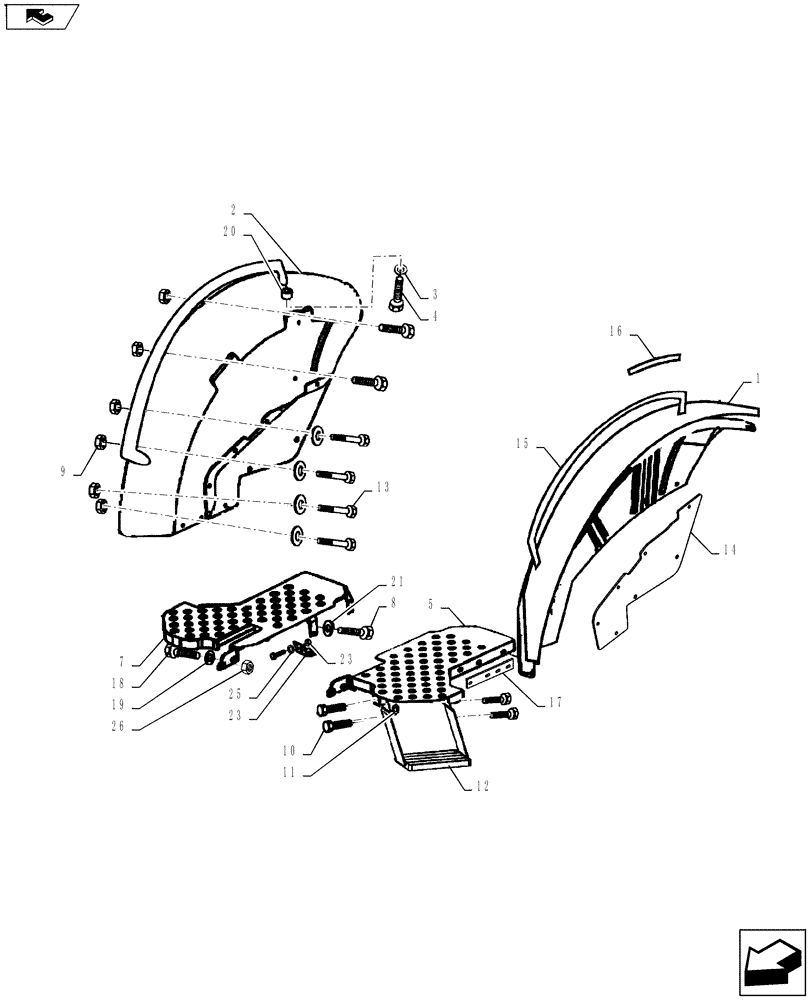

Запчасти Case IH FARMALL 65A (90.116.01) - REAR FENDERS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84425783

FENDER

LH Farmall-65

1шт.

1

84425783

FENDER

LH Farmall-75

1шт.

2

84425785

FENDER

RH Farmall-65

1шт.

2

84425785

FENDER

RH Farmall-75

1шт.

3

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

4шт.

4

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

4шт.

5

87583132

FOOT BOARD

LH

1шт.

6

14496604

WASHER,10.5mm ID x 21mm OD x 2mm Thk

16шт.

7

87375039

FOOT BOARD

RH

1шт.

8

15970721

SCREW,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

9

12164720

NUT

16шт.

10

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

11

83904166

WASHER,10.5mm ID x 30mm OD x 4mm Thk

4шт.

12

87365114

STEP

Footboard

1шт.

13

412159

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

14

87379717

EXTENSION

Plate

2шт.

15

5183479

HANDRAIL

2шт.

16

87548116

RUBBER SEAL,600mm L

Fender Beading

2шт.

17

87715198

SPACER

M16

2шт.

18

15980321

BOLT,Hex, M16 x 1.5 x 25mm, Cl 8.8, Full Thd

4шт.

19

10520221

WASHER,16.4mm ID x 28mm OD x 3mm Thk

4шт.

20

5185877

GASKET

4шт.

21

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

22

82826876

BRACKET

1шт.

23

15896211

NUT,M6, Cl 8

4шт.

24

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

4шт.

25

10571579

LOCK WASHER,M6

2шт.

26

12164111

NUT,M16, Cl 8

8шт.
