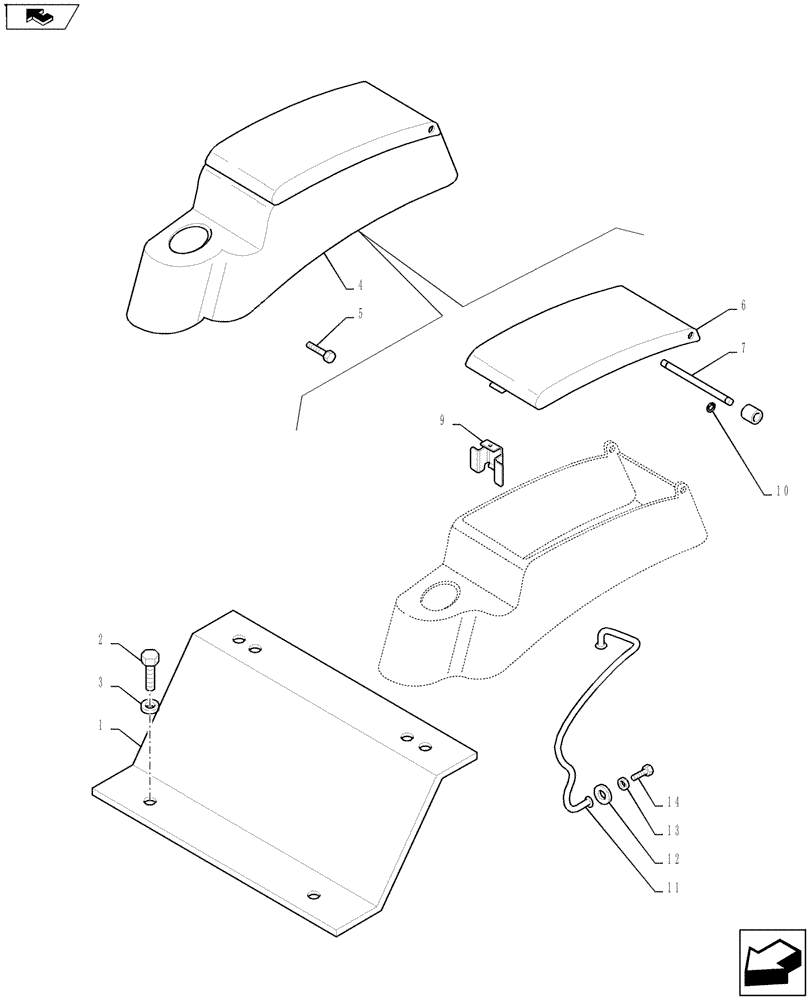

Запчасти Case IH FARMALL 65A (90.115.01) - ARMREST AND COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

5179480

BRACKET

1шт.

2

15540231

SCREW,Hex, M12 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

3

11197979

BELLEVILLE WASHER,M12 Bolt Size x 24mm OD

2шт.

4

47136712

Box, Tool, Assy.

1шт.

5

10589928

SCREW,Flat Hd, M6 x 20.2mm OAL 10mm Collar

M6 x 17

5шт.

6

47136711

COVER

1шт.

7

47136714

PIN

1шт.

8

47136715

BUSHING

2шт.

9

47136717

LATCH

1шт.

10

11087874

CIRCLIP,M6

2шт.

11

47126937

HANDRAIL

1шт.

12

5185877

GASKET

2шт.

13

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

14

11306924

BOLT,Hex, M10 x 1.25 x 30, 8.8, Full Thd

2шт.
