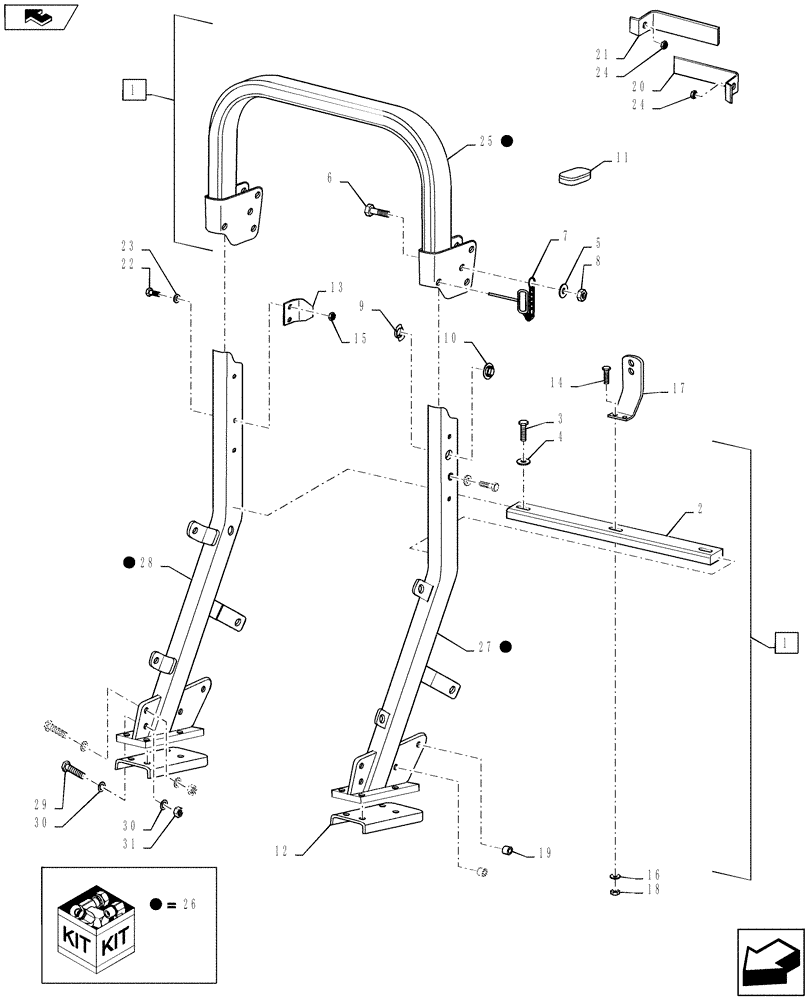

Запчасти Case IH FARMALL 65A (90.114.03) - ROPS - FOLDABLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87692892

ROPS

Includes Ref. 2-8, 11, 25-28

1шт.

2

NSS

NOT SOLD SEPARAT

1шт.

3

15540421

SCREW,Hex, M12 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

4

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

2шт.

5

10520321

WASHER,18.4mm ID x 32mm OD x 4mm Thk

2шт.

6

15985621

BOLT,Hex, M18 x 1.5 x 120mm, Cl 8.8

Hex, M18 x 1.5 x 120

2шт.

7

87558090

PIN

2шт.

8

10726611

THIN NUT,Thin, M18, 1.5mm Pitch, Cl 04, ZND

4шт.

9

87586005

CLIP

2шт.

10

87586006

CLIP

4шт.

11

87365545

PLUG

2шт.

12

5125979

PLATE

2шт.

13

87373775

BRACKET

1шт.

14

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

15

16102221

NUT,M8, Cl 10

M8, Cl 10

2шт.

16

14496505

WASHER,Flat, 8.40mm ID x 17.00mm OD x 1.60mm, CST, ZND

M8 x 17 x 1.6

2шт.

17

87394135

BRACKET

SMV

1шт.

18

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

19

87369154

SPACER

4шт.

20

87657365

BRACKET

LH

1шт.

21

87657366

BRACKET

RH

1шт.

22

16606424

SCREW,M8 x 1.25 x 65mm

M8 x 65

2шт.

23

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

24

16104111

NUT,Prevailing Torque, M8, 1.25 Pitch, 10.6mm High, Cl 08, ZND

2шт.

25

NSS

NOT SOLD SEPARAT

UPPER TUBE

1шт.

26

NSS

NOT SOLD SEPARAT

ROPS KIT Includes: Ref. 25,27,28

1шт.

27

NSS

NOT SOLD SEPARAT

LH TUBE

1шт.

28

NSS

NOT SOLD SEPARAT

RH TUBE

1шт.

29

11354021

BOLT,Hex, M12 x 1.5 x 60mm, Cl 8.8

M12x1.5x60 (U/W Ref.19)

2шт.

30

12646901

WASHER,12.2mm ID x 8mm OD x 3mm Thk

12.2x28x3 (U/W Ref.19)

4шт.

31

10790311

NUT

M12x1.5 (U/W Ref.19)

2шт.
