Запчасти Case IH FARMALL 65A (90.108.02) - DECALS - OPERATING INSTRUCTIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS

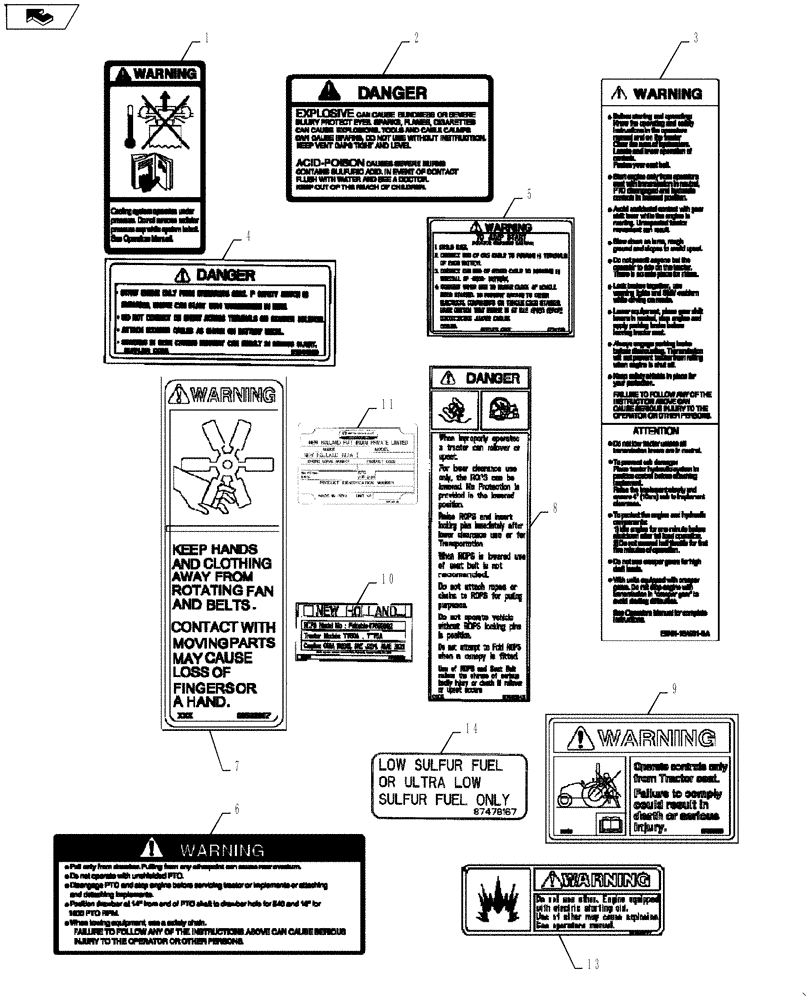

Схема запчастей Case IH FARMALL 65A - (90.108.02) - DECALS - OPERATING INSTRUCTIONS (90) - PLATFORM, CAB, BODYWORK AND DECALS
14
2
7
6
13
11
3
1
10
4
5
home
8
9

Артикул

Название

Примечание

Количество

1

84384178

WARNING DECAL

Radiator

1шт.

2

87531227

DECAL

Battery Safety Instruction

1шт.

3

82030429

DECAL

Operating Instruction

1шт.

4

87541599

DECAL

Starter, Danger

1шт.

5

87541598

DECAL

Warning, Jump Start

1шт.

6

86532904

WARNING DECAL

Drawbar Pull

1шт.

7

86532907

WARNING DECAL

Fan

2шт.

8

87600542

DATA PLAQUE

Decals, Rops

1шт.

9

87300025

WARNING DECAL

HPL

1шт.

10

84291080

DECAL

Rops ( Engineering Not Available)

1шт.

11

NSS

NOT SOLD SEPARAT

Decal, Identity Plate

1шт.

12

86547781

REFLECTOR,RED

Red Reflective Tape, 50 mm x 230 mm, Not Illustrated

2шт.

13

84384179

WARNING DECAL

Ether

1шт.

14

87478167

DECAL

Fuel Usage

1шт.

15

87380787

DATA PLAQUE

Dry Air Cleaner, Not Illustrated

1шт.

Выбрано товаров: 15
