Запчасти Case IH FARMALL 65A (90.100.03) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

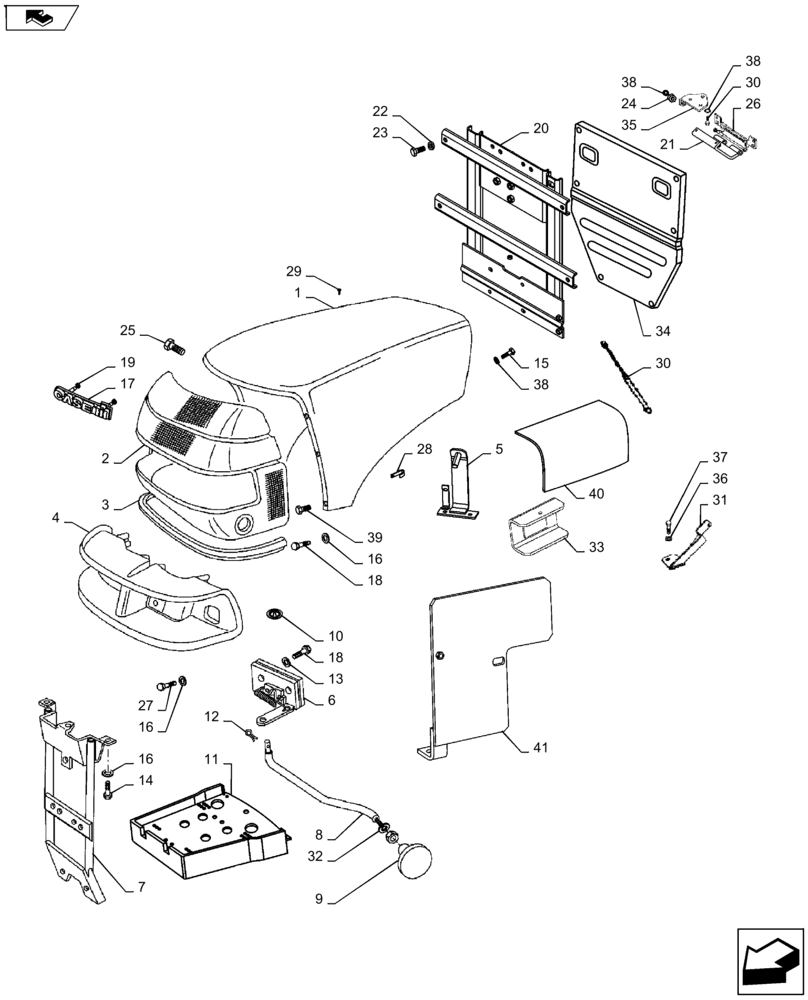

Схема запчастей Case IH FARMALL 65A - (90.100.03) - ENGINE HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
40
1
41
14
2
23
3
37
38
16
15
10
36
38
22
5
19
16
27
39
25
31
32
28
30
6
26
30
34
16
18
7
9
4
29
17
11
24
20
13
38
21
35
8
18
12
33

Артикул

Название

Примечание

Количество

1

84257362

ENGINE HOOD

1шт.

2

47131803

GRILLE

1шт.

3

84253489

SEALING STRIP

1шт.

4

5199747

RADIATOR PANEL

1шт.

5

84255605

BRACKET

1шт.

6

84303435

LATCH

Latch, Hood

1шт.

7

47131827

SUPPORT

1шт.

8

47131846

ROD

1шт.

9

47056191

PUSH BUTTON

1шт.

10

47126667

SPRING CLIP

1шт.

11

84256465

BRACKET

Plate Assy., Battery Mounting

1шт.

12

10734401

COTTER PIN,M2 x 22

1шт.

13

10571579

LOCK WASHER,M6

2шт.

14

13276014

SCREW,Pozidriv Pan Hd, M6 x 12mm, Cl 5.8, Full Thd

6шт.

15

15213321

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

16

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

34шт.

17

87564049

EMBLEM

1шт.

18

10979421

SCREW,Hex, M6 x 10mm, Cl 8.8

9шт.

19

5138360

RING,4mm ID x 12mm OD x 3mm Thk

7шт.

20

87475521

GUARD

1шт.

21

84255587

HINGE

1шт.

22

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

3шт.

23

16043121

SCREW,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

7шт.

24

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

1шт.

25

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

26

5097318

HINGE

4шт.

27

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

5шт.

28

5088304

CLAMP

3шт.

29

83951873

PLUG

5шт.

30

84271485

GAS STRUT

1шт.

31

87686212

BODY

Bracket, Front Hood Reinforcement

1шт.

32

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

33

84242498

BRACKET, SUPPORTING

Fuel Tank Centering

2шт.

34

87652003

PARTITION

Fire Wall

1шт.

35

47130477

SUPPORT

1шт.

36

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

9шт.

37

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

9шт.

38

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

39

16046521

SCREW,Hex, M8 x 170mm, Cl 8.8

1шт.

40

87600539

HEAT SHIELD

Engine, Cover, LH

1шт.

41

84305804

PANEL

Assy., Guard RH

1шт.

Выбрано товаров: 41
