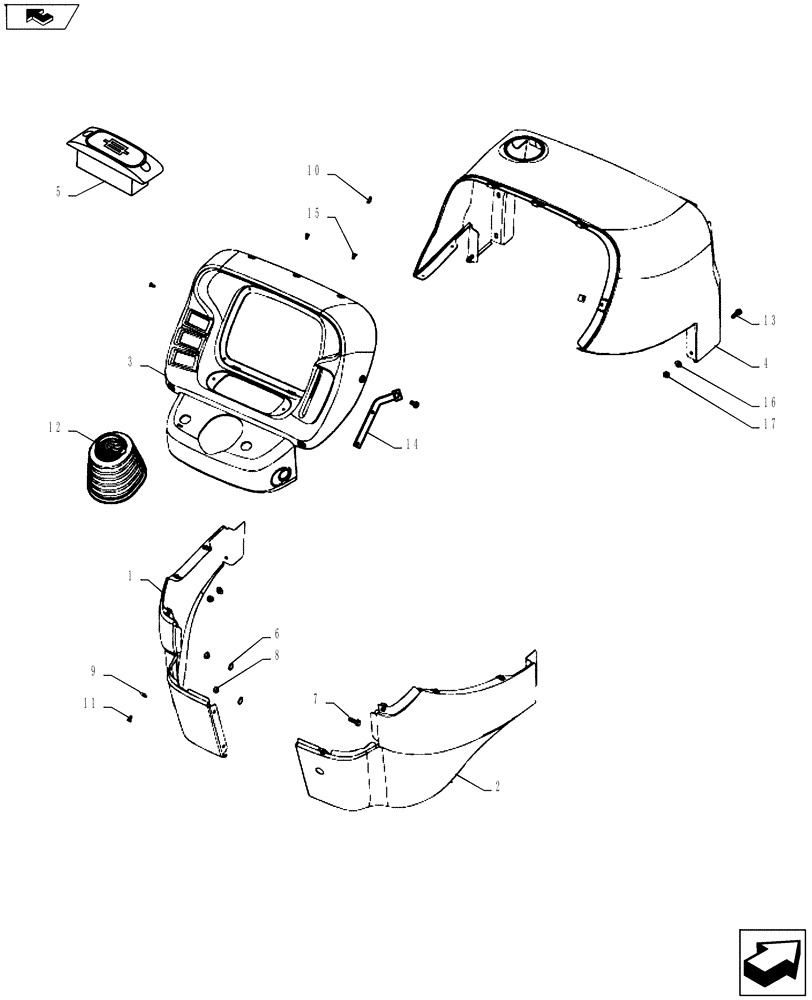

Запчасти Case IH FARMALL 65A (90.100.02) - CONSOLE - STEERING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84263287

HOOD

Panel, LH

1шт.

2

84263286

HOOD

Panel, RH

1шт.

3

84263288

HOOD

Dashboard

1шт.

4

84537351

HOOD

Hood, Red

1шт.

5

84301872

COVER

Fuse

1шт.

6

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

16шт.

7

10977921

SCREW,Hex, M5 x 18mm, Cl 8.8, Full Thd

4шт.

8

15896211

NUT,M6, Cl 8

2шт.

9

14369474

NUT,M4.2, U, 16.3mm long

4шт.

10

14372274

SPRING NUT,M4.2, U, 16mm long

5шт.

11

84185739

SCREW,Phillips Drive, Pan HD, #8 - 18 x 5/8"

9шт.

12

87359069

BOOT

1шт.

13

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

14

87631805

BRACKET MONITOR EQUI

Rear Hood, Steering Mounting

1шт.

15

14591687

BUTTON,8mm OD x 7.5mm L, Black

3шт.

16

82823236

LOCK WASHER

12шт.

17

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

6шт.
