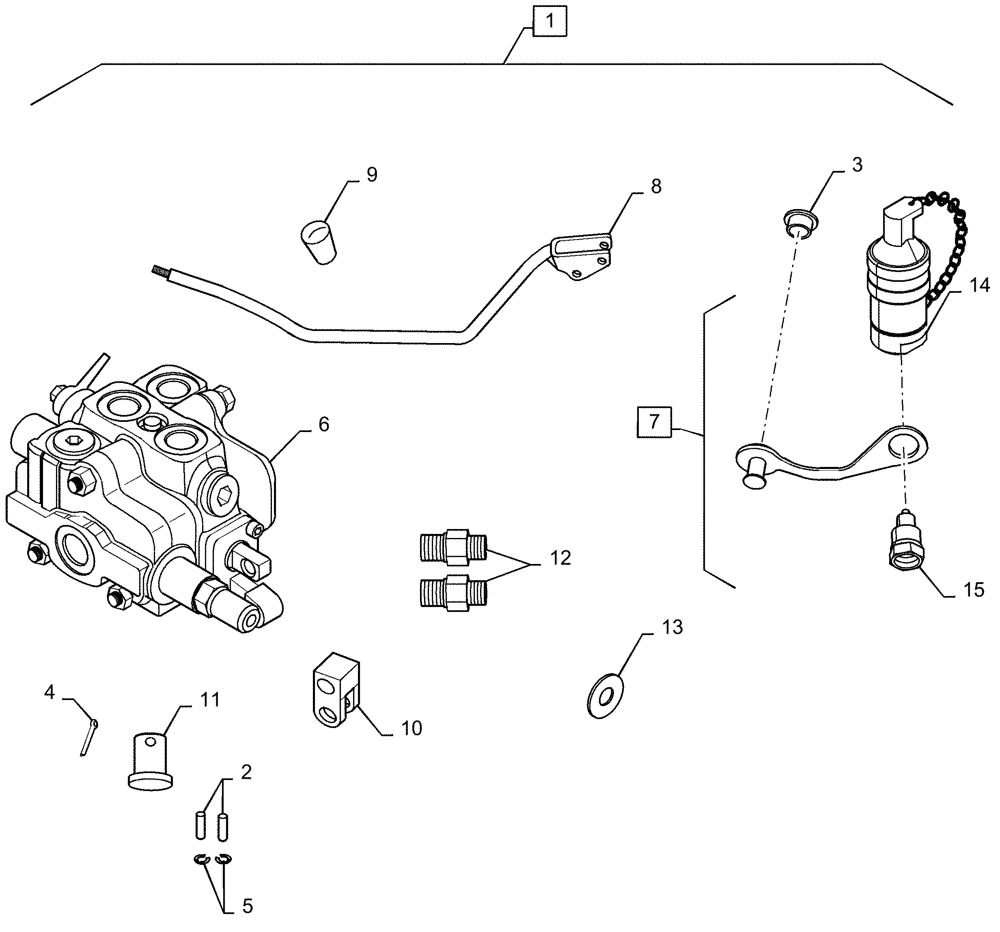

Запчасти Case IH FARMALL 65A (88.100.02) - 2ND REMOTE VALVE, DIA KIT - 719279022 - ON & ABOVE PIN # 8152181 FARMALL 65A & 1136916 FARMALL 75A (88) - ACCESSORIES

1

719279022

DIA KIT, TRAC HYD SY

Rear Remote Valve #2 Position Includes Of Ref. 2 - 13

1шт.

ON & ABOVE PIN # 8152181 FARMALL 65A & 1136916 FARMALL 75A

1шт.

2

5136634

PIN,7mm OD x 30.5mm L

2шт.

3

5179577

PLUG,24mm, Blu

Dust

2шт.

4

10734401

COTTER PIN,M2 x 22

1шт.

5

11087876

CIRCLIP,M7

4шт.

6

87704555

REMOTE CONTROL VALVE

1шт.

7

84405721

COUPLING, QUICK, FEM

Coupling, Quick, Female

2шт.

8

87386928

LEVER

Doubling Acting W/Float

1шт.

9

87488624

KNOB

1шт.

10

87693359

LINK

Intermediate Remote Valve

1шт.

11

87705648

PIN,9mm OD x 21.5mm L

Valve Spool

1шт.

12

5148191

HYD CONNECTOR,M18 x 1.5 ORB x 1/2" - 14 NPT

Nipple

2шт.

13

10261660

SEALING WASHER,M18.3 x 26 x 1.5, Copper

4шт.

14

84405721

COUPLING, QUICK, FEM

1шт.

15

84405726

QUICK MALE COUPLING

1шт.
