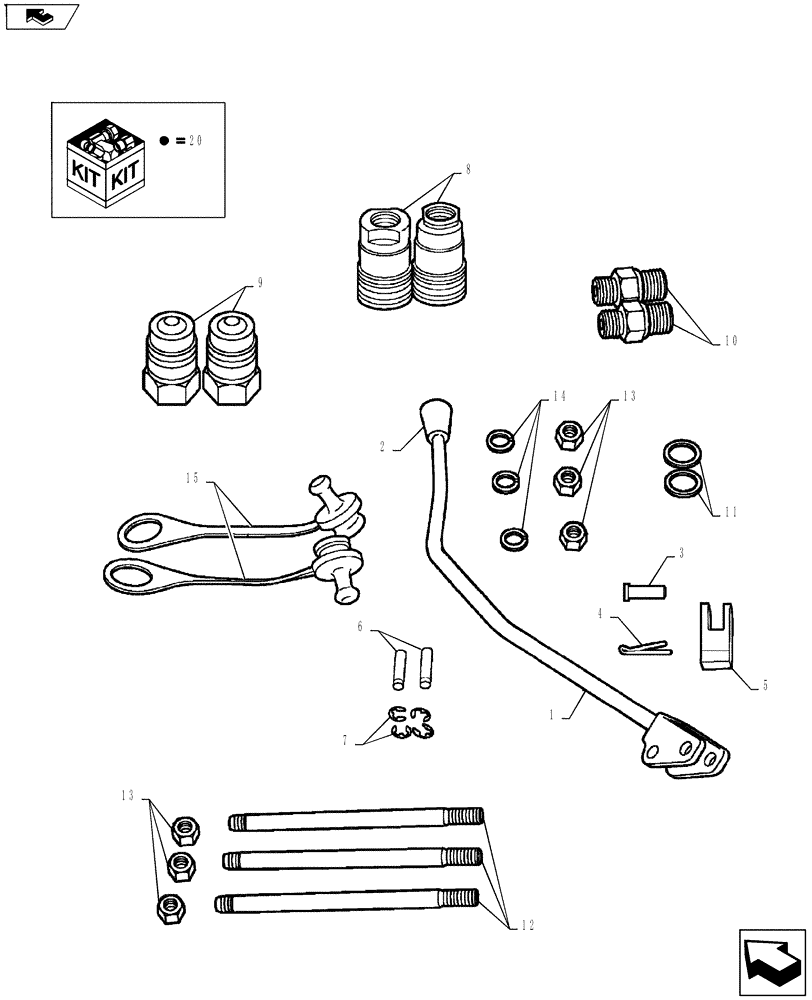

Запчасти Case IH FARMALL 65A (88.100.01) - 2ND REMOTE VALVE KIT - 719935026 USED BELOW PIN # 8152181 FARMALL 65A & 1136916 FARMALL 75A (88) - ACCESSORIES

1

87386928

LEVER

1шт.

USED BELOW PIN # 8152181 FARMALL 65A & 1148109 FARMALL 75A

1шт.

2

5092203

KNOB

Brown

1шт.

3

5126824

PIN,6.4mm OD x 21.5mm L

Hand Lever

1шт.

4

10734301

COTTER PIN,M2 x 18

1шт.

5

5136635

LINK CONROD

1шт.

6

5136634

PIN,7mm OD x 30.5mm L

2шт.

7

87016950

SNAP RING,M7, Ext

4шт.

8

84405721

COUPLING, QUICK, FEM

2шт.

9

84405726

QUICK MALE COUPLING

2шт.

10

5148191

HYD CONNECTOR,M18 x 1.5 ORB x 1/2" - 14 NPT

Nipple, M18 x 1.5 x 1/2"

2шт.

11

4858610

SEAL,18.3mm ID x 24mm OD x 1.5mm Thk

2шт.

12

5146464

TIE-ROD

3/8", L=152

3шт.

13

5116857

NUT,3/8" - 24

6шт.

14

10569471

LOCK WASHER,Lock, 3/8"

3/8"

3шт.

15

5179576

PLUG,24mm, Green

Green

2шт.

16

11190574

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

Not Illustrated

4шт.

17

87335172

SEALING RING,19mm ID x 26mm OD x 3mm Thk

SEALRING Not Illustrated

3шт.

18

87357854

SEALING RING,15.5mm ID x 19.5mm OD x 2mm Thk

SEALRING Not Illustrated

1шт.

19

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

Not Illustrated

7шт.

20

719935026

DIA KIT, TRACTOR

Includes Ref. 1-19

1шт.
