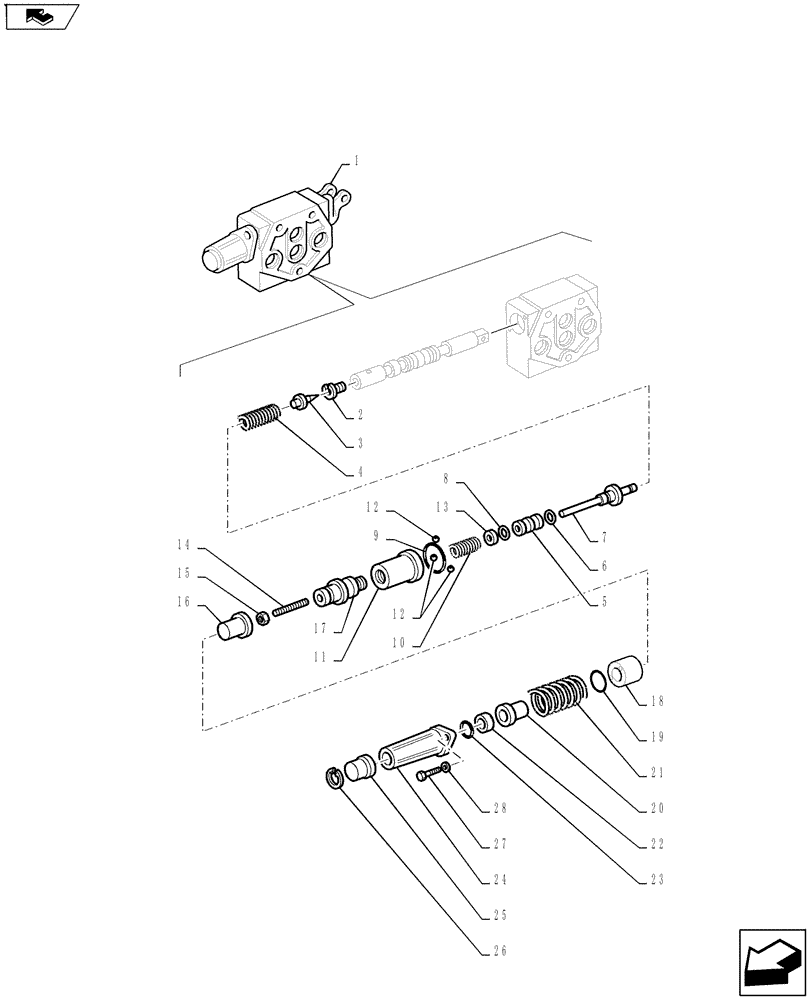

Запчасти Case IH FARMALL 65A (88.100.01[02]) - REMOTE VALVE W/FLOAT AND DETENT - 5152878 (88) - ACCESSORIES

1

5152878

CONTROL VALVE

1шт.

USED BELOW PIN # 8152181 FARMALL 65A & 1148109 FARMALL 75A

1шт.

2

5143554

PLUG,Slot, M7 x 0.75

1шт.

3

5143555

PIN,5.5mm OD x 12mm L

1шт.

4

5143556

SPRING,Compression, 9mm OD x 21.2mm L

1шт.

5

5163363

BUSHING,5.5mm ID x 12mm OD x 16mm L

1шт.

6

5143558

O-RING,1.78mm Thk x 2.54mm ID

1.78 x 2.57

1шт.

7

5143557

PIN,5.5mm OD x 52.5mm L

1шт.

8

5143560

RING,9.91mm ID x 12.61mm OD x 1.2mm Thk

D = 9.91 x 12.61

1шт.

9

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

10

5163369

SPRING,Compression, 9mm OD x 38mm L

1шт.

11

5143574

SPOOL

1шт.

12

20063420

BALL,3.96mm OD, Gr 100

3шт.

13

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

1шт.

14

5163362

ADJUSTMENT SCREW,Hdls Hex Skt, M3.5 x 10mm

30MM L

1шт.

15

15896421

NUT,M5, Cl 10

1шт.

16

5143564

SPRING CUP,19mm ID x 27mm OD x 10.4mm L

1шт.

17

5163365

PLUG,M14 x 1.5

1шт.

18

5143578

SPACER,28mm ID x 32mm OD x 29.5mm L

1шт.

19

5135736

O-RING,1.78mm Thk x 20.35mm ID, 80 Duro

1шт.

20

5143575

CUP,13mm ID x 21.5mm OD x 18mm Thk

2шт.

21

5116893

SPRING,Compression, 27mm OD x 43mm L

1шт.

22

5143576

SPACER,13mm ID x 18.5mm OD x 5mm L

1шт.

23

5143577

SNAP RING,11.2mm D x 1.6mm Thk

1шт.

24

5143566

FLANGE COVER CAP,28.8mm ID x 32mm OD x 60mm L

1шт.

25

5143567

COVER

1шт.

26

13421276

SNAP RING,M28, Int

1шт.

27

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

28

5143621

HEX SOC SCREW,6.35mm OD x 48.5mm L

4шт.
