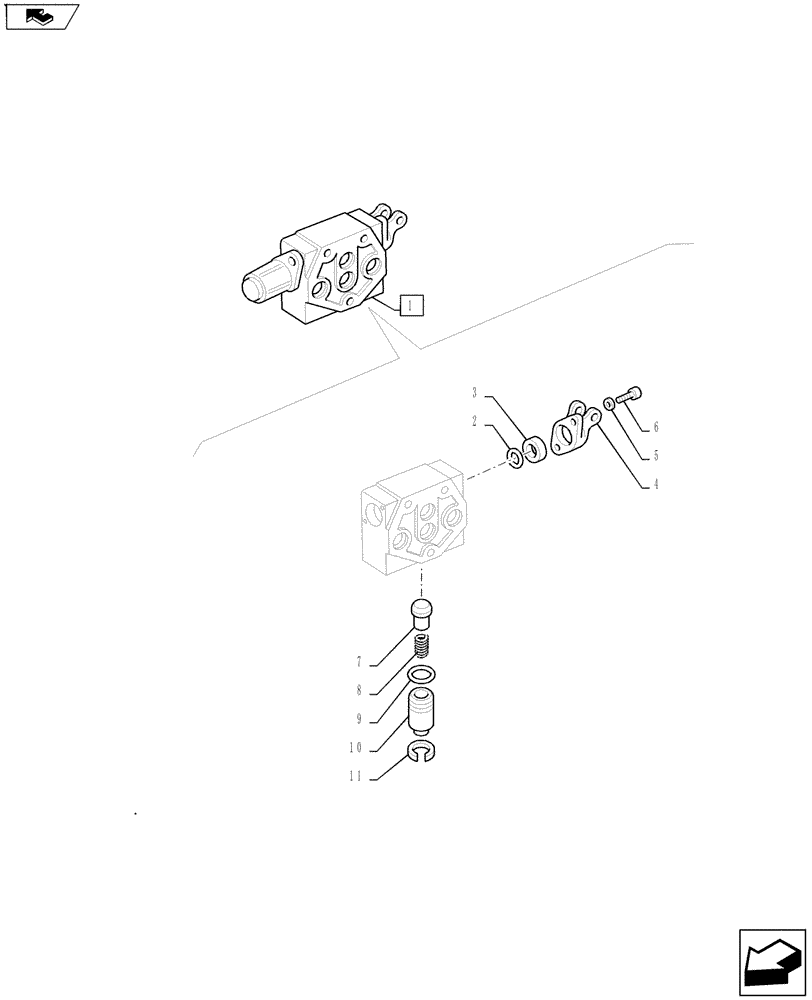

Запчасти Case IH FARMALL 65A (88.100.01[01]) - REMOTE VALVE W/FLOAT AND DETENT - 5152878 (88) - ACCESSORIES

1

5152878

CONTROL VALVE

1шт.

USED BELOW PIN # 8152181 FARMALL 65A & 1148109 FARMALL 75A

1шт.

2

5135734

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

2шт.

3

5116889

SCRAPER RING,15.6mm ID x 25.4mm OD x 4.8mm Thk

1шт.

4

5154665

SUPPORT

Pivot Bracket

1шт.

5

11197774

BELLEVILLE WASHER,M6 Bolt Size x 12mm OD x 1.2mm Thk

4шт.

6

5124338

HEX SOC SCREW,6.35mm OD x 19mm L

4шт.

7

5116886

PIN,9.4mm OD x 10.5mm L

1шт.

8

5116884

SPRING,Compression, 6mm OD x 16mm L

1шт.

9

5135732

O-RING,0.07" Thk x 0.426" ID, -13, Cl 7, 75 Duro

1шт.

10

5135835

VALVE GUIDE,14.25mm OD x 28.5mm L

1шт.

11

5138508

BACK-UP RING,Back Up, 10mm ID x 12mm OD x 10mm Thk

1шт.
