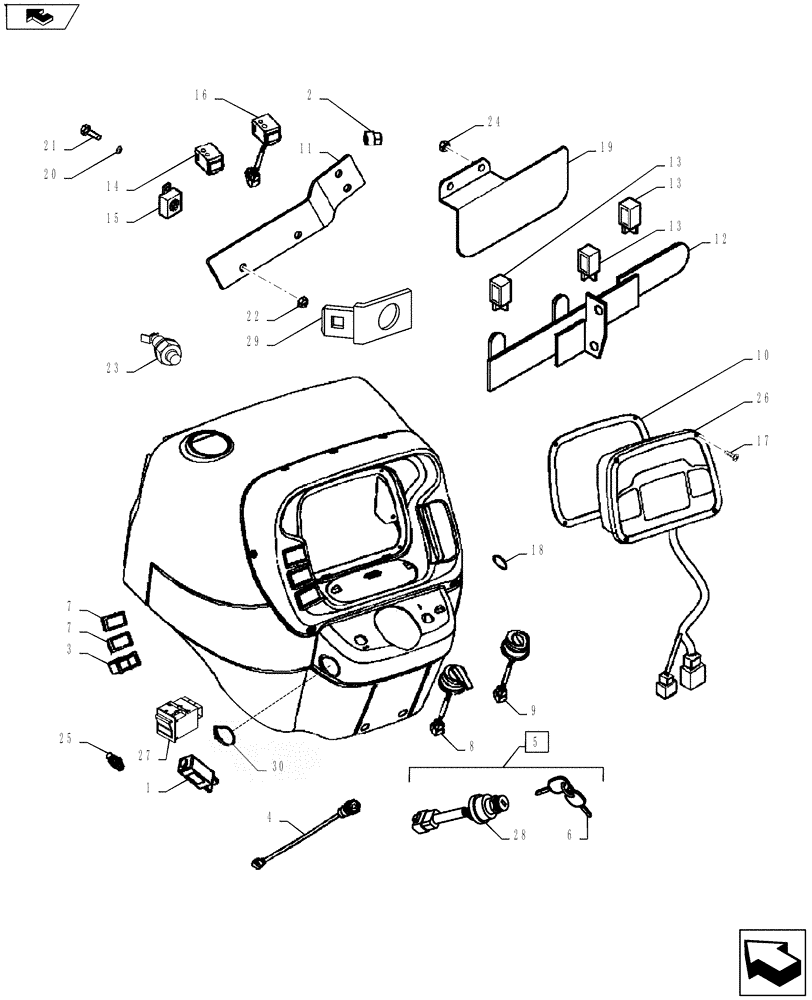

Запчасти Case IH FARMALL 65A (55.418.01) - DASHBOARD - ELECTRICAL COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87302334

SWITCH,Four Connectors

PTO Safety

1шт.

2

86529089

RELAY

Safety Start

1шт.

3

87648927

FLASHER SWITCH

Flasher, Hazard Warning

1шт.

4

82824863

SWITCH ASSY

Brake/Clutch

2шт.

5

84280150

IGNITION SWITCH

Includes Ref. 6, 28

1шт.

6

84280151

IGNITION KEY

Qty. consist of 1 set with 2 keys.

1шт.

7

5166218

PLUG,Switch

2шт.

8

82826727

SWITCH ASSY

Turn Signal

1шт.

9

82826728

SWITCH ASSY

Light

1шт.

10

5175371

GASKET,3mm Thk

Instrument Cluster

1шт.

11

84192959

BRACKET

Buzzer

1шт.

12

87396650

BRACKET

Relay Mounting

1шт.

13

86509590

RELAY

PTO Safety, Fuel Shutoff, Flasher Cutoff

3шт.

14

86400241

CONTROL UNIT

Control Unit, Operator Safety Module

1шт.

15

87494073

BUZZER

Park Brake

1шт.

16

87494071

FLASHER UNIT,12V

1шт.

17

5180363

HEX SOC SCREW,M4 x 0.7 x 25mm, Cl 8.8

4шт.

18

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

1шт.

19

87548631

SHIELD

Harness

1шт.

20

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

3шт.

21

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

3шт.

22

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

3шт.

23

87750882

PRESSURE SWITCH

Oil

1шт.

24

15896211

NUT,M6, Cl 8

2шт.

25

504364480

SENSOR

Oil Pressure Coolant, Single Wire DIA 1/2 x 14 NPTF

1шт.

26

48048578

INSTRUMENT CLUSTER

1шт.

27

84248812

SWITCH ASSY

Lamp, Work

1шт.

28

84280152

IGNITION SWITCH

1шт.

29

82834161

CABLE TERMINAL

Terminal - Male Blade

1шт.

30

87527719

PLUG

Placement On Left Side Of Dash

1шт.
