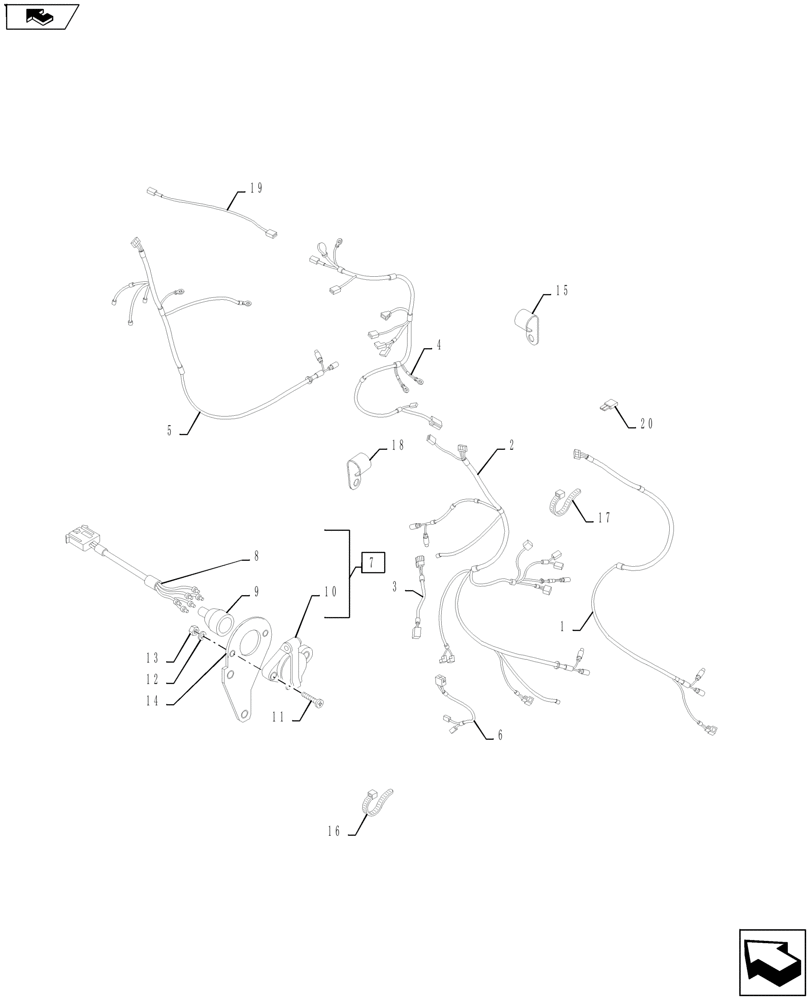

Запчасти Case IH FARMALL 65A (55.100.01) - WIRING HARNESS (55) - ELECTRICAL SYSTEMS

1

84248811

ELECTRIC CABLE

Harness, Wire

1шт.

2

84248809

ELECTRIC CABLE

Engine, Serial Range: -10/1/2009

1шт.

3

87316995

WIRE HARNESS

Fusible Link

1шт.

4

84248808

ELECTRIC CABLE

Main

1шт.

4

84209114

DIODE,3A

Used on Harness 84248808

1шт.

5

87666627

ELECTRIC CABLE

LH Fender, Serial Range: -10/1/2009

1шт.

Used with 87666623 Neutral Safety Switch

1шт.

Used with 87385234 Operator Presence Switch

1шт.

6

87544408

WIRE HARNESS

Extension, Air Clog Switch

1шт.

7

5196943

WIRE HARNESS

Trailer Socket, Includes Ref. 8-10

1шт.

8

5189716

WIRE HARNESS

1шт.

9

5186014

CAP

1шт.

10

5186012

SOCKET/RECEPTACLE

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

13

9706690

NUT,M8 x 1.25, Cl 8

2шт.

14

87539037

BRACKET

Trailor Socket

1шт.

15

82823137

HOSE CLIP

8шт.

16

14560187

COLLAR,199mm L

L = 203.2 mm

11шт.

17

14560287

CABLE TIE,207.00mm L

COLLAR

4шт.

18

87583439

COLLAR

3шт.

19

84256213

HARNESS

Alternator

1шт.

20

84127703

FUSE,15A, Mini, Blue

Fuse, 15 Amps

1шт.

20

84127704

FUSE,20A, Mini, Yellow

Fuse, 20 Amps

1шт.
