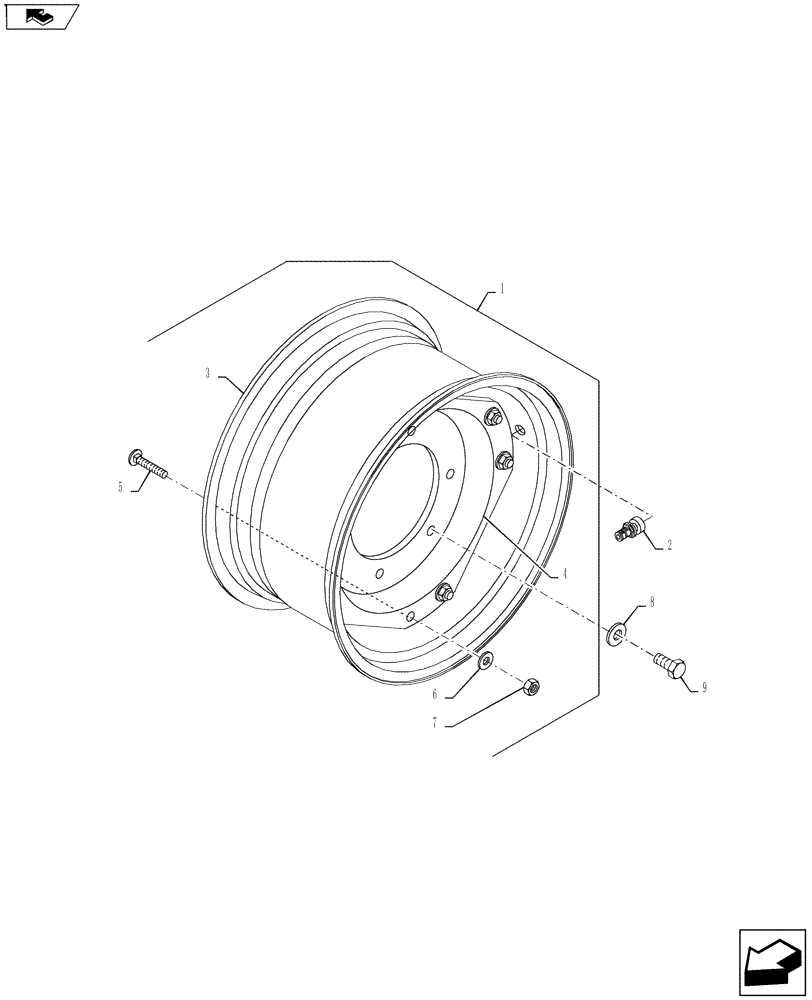

Запчасти Case IH FARMALL 65A (44.511.02) - FRONT WHEELS - 4WD (44) - WHEELS

1

87639005

WHEEL ASSY

24 x W10-11.2-24

2шт.

2

86507333

VALVE STEM

2шт.

3

NSS

NOT SOLD SEPARAT

RIM, 24 x W10

2шт.

4

NSS

NOT SOLD SEPARAT

WHEEL DISC, 24

2шт.

5

120048

CARRIAGE BOLT,M16 x 80mm, Cl 8.8

16шт.

6

86639311

WASHER,17.5mm ID x 34mm OD x 3mm Thk

16шт.

7

100020

NUT,M16 x 2.0, Cl 8

16шт.

8

10520221

WASHER,16.4mm ID x 28mm OD x 3mm Thk

Use With 16249821 or 16249824

12шт.

9

16249824

SCREW,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

12шт.

9

16249821

BOLT,Hex, M16 x 2 x 35mm, Cl 8.8, Full Thd

12шт.
