Запчасти Case IH FARMALL 65A (44.101.02) - FRONT AXLE - 2WD (44) - WHEELS

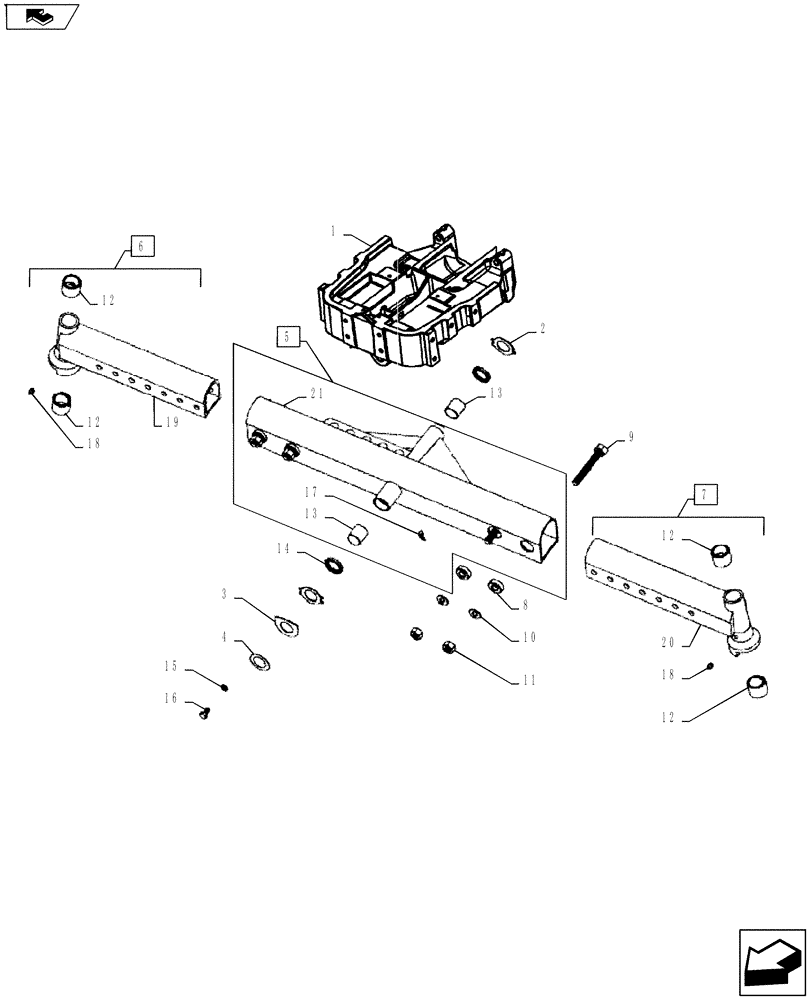

Схема запчастей Case IH FARMALL 65A - (44.101.02) - FRONT AXLE - 2WD (44) - WHEELS
19
20
18
12
5
14
10
16
9
7
13
13
15
12
11
home
12
21
17
6
2
4
12
3
1
8
18

Артикул

Название

Примечание

Количество

1

84255229

SUPPORT

Front

1шт.

2

82833511

THRUST WASHER,38mm ID x 60mm OD x 2mm Thk

2шт.

3

82833507

THRUST WASHER

2шт.

4

82833729

SHIM

0.74 mm

1шт.

4

82833728

SHIM

0.32 mm

1шт.

4

82833727

SHIM

0.37 mm

1шт.

4

82824584

SHIM

0.22 mm

1шт.

4

82824838

SHIM

0.125 mm

1шт.

5

84168696

AXLE HOUSING

Includes Ref. 13, 17 & 21, Start Serial: 11/1/2008

1шт.

6

0C

ORDER COMPONENTS

End, RH, Includes Ref. 12, 18, 19

1шт.

7

0C

ORDER COMPONENTS

End, LH, Includes Ref. 12, 18, 20

1шт.

8

5104245

SPACER,16.2mm ID x 40mm OD x 15mm

D = 16.2 x 40 x 15

4шт.

9

15981921

BOLT,Hex, M16 x 1.5 x 125mm, Cl 8.8

ZND

4шт.

10

10517279

LOCK WASHER,16.2mm ID x 30.6mm OD x 4.2mm Thk

4шт.

11

15502611

NUT,Hex, M16 x 1.5

Hex Lock, M16 x 1.5

4шт.

12

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

4шт.

13

5115656

BUSHING,38.05mm ID x 42mm OD x 40mm L

, Start Serial: 11/1/2008

2шт.

14

82833544

SEAL,36.4mm ID x 50.9mm OD x 6mm Thk

Oil

2шт.

15

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

1шт.

16

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

17

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

1шт.

18

84351730

FITTING,M10 x 1

, Serial Range: -`0

2шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

19

87699331

END

Front, RH

1шт.

18

84351730

FITTING,M10 x 1

M10 x 1

2шт.

20

87699330

END

Front, LH

1шт.

21

87699324

AXLE HOUSING

Body

1шт.

Выбрано товаров: 27
