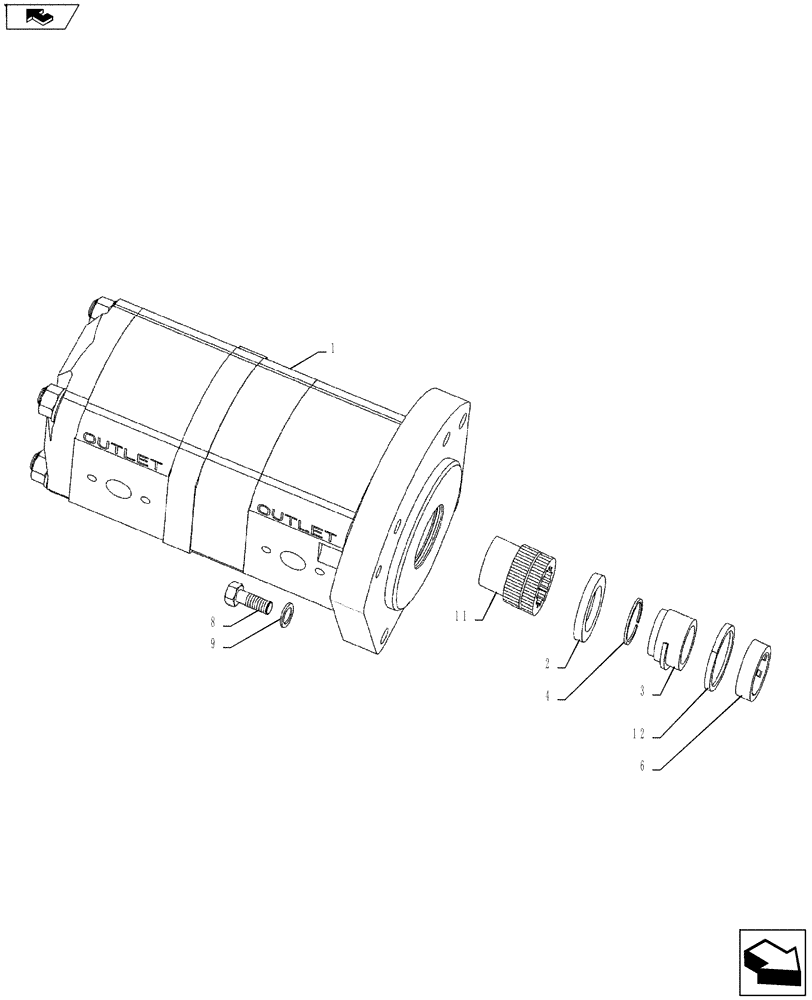

Запчасти Case IH FARMALL 65A (41.206.02) - TANDEM HYDRAULIC/STEERING PUMP (41) - STEERING

1

84150306

HYDRAULIC PUMP,14.3 CC

Tandem 14459080 O-Ring is used to Mount Tandem Pump

1шт.

2

5118568

CENTERING RING

1шт.

3

5118570

HUB

1шт.

4

13398376

SNAP RING,M40, Int

1шт.

5

8273919

NUT

Hex. 7/16 - 20, Not Illustrated

1шт.

6

5118569

COUPLING

1шт.

7

5167989

SEAL,0.8mm Thk

Tandem Pump, Goes Between The 2 Pumps, Not Illustrated

1шт.

8

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

4шт.

9

85700654

WASHER,10.5mm ID x 20mm OD x 2.5mm Thk

4шт.

10

8273918

KEY

Not Illustrated

1шт.

11

87736196

SHAFT

1шт.

12

8273920

LOCK WASHER

Special

1шт.

13

84483741

SEAL KIT

Not Illustrated

1шт.
