Запчасти Case IH FARMALL 65A (41.204.01) - STEERING COLUMN (41) - STEERING

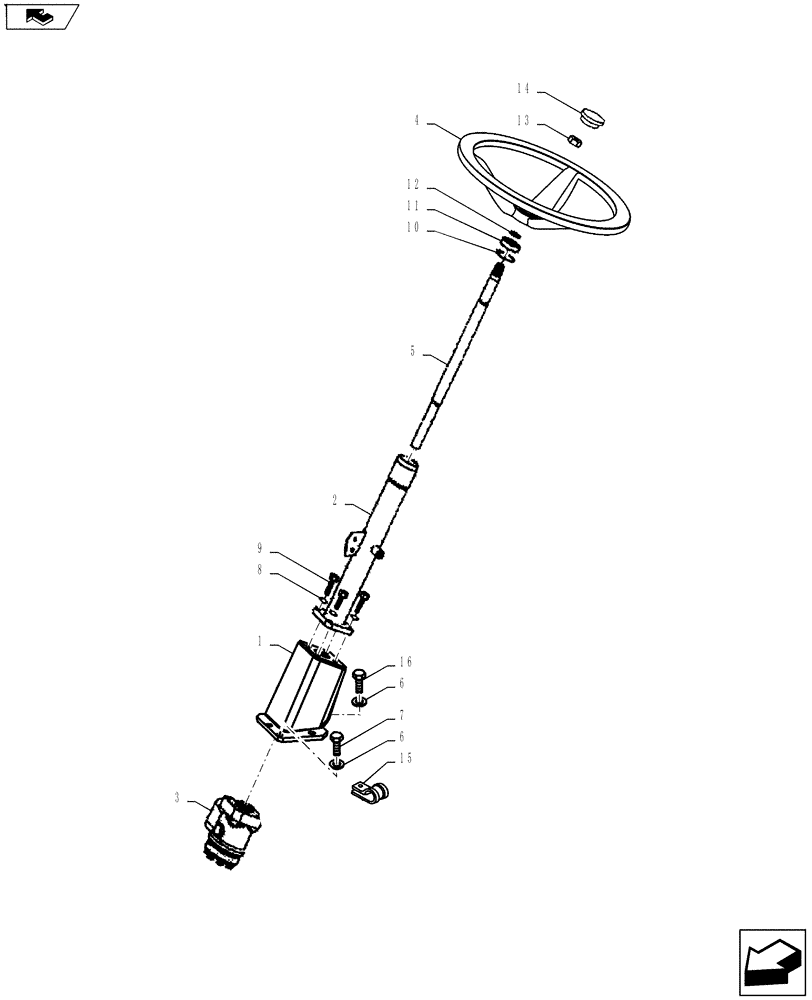

Схема запчастей Case IH FARMALL 65A - (41.204.01) - STEERING COLUMN (41) - STEERING
2
9
13
8
15
3
6
6
16
10
5
home
4
11
7
14
1
12

Артикул

Название

Примечание

Количество

1

84261140

SUPPORT

Steering Column

1шт.

2

84250291

STEERING COLUMN

1шт.

3

84289790

MOTOR

Reactive Steering Valve, 2wd

1шт.

3

84538274

Non Reactive Steering Valve, 2wd

1шт.

Serial Number Break Required

1шт.

3

82824945

HYDRAULIC STEERING

Reactive Steering Valve, 4wd

1шт.

3

47376672

STEERING VALVE

Non Reactive Steering Valve, 4wd

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

4

84292333

STEERING WHEEL

1шт.

5

87317616

SHAFT

Steering Column

1шт.

6

10572179

LOCK WASHER,M16

4шт.

7

14313720

HEX SOC SCREW,M16 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

8

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

4шт.

9

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

10

11060176

CIRCLIP,M45 x 1.75mm Thk, Int

1шт.

11

82824817

BALL BEARING,22 mm ID x 44 mm OD x 12 mm

Stg. Column Upper Shaft

1шт.

12

83957981

CIRCLIP

1шт.

13

12164111

NUT,M16, Cl 8

1шт.

14

82002548

CAP

1шт.

15

87335288

COLLAR

Clamp Wiring harness

1шт.

16

87536544

SCREW,Hex, M16 x 1.5 x 30mm, Gr 10.9

M16 x 1.5 x 30

1шт.

17

84539291

MOTOR

Motor, Hydraulic Assy., Steering, Includes Ref 84538274. Not Illustrated

1шт.

Выбрано товаров: 22
