Запчасти Case IH FARMALL 65A (41.200.03) - POWER STEERING RESERVOIR (41) - STEERING

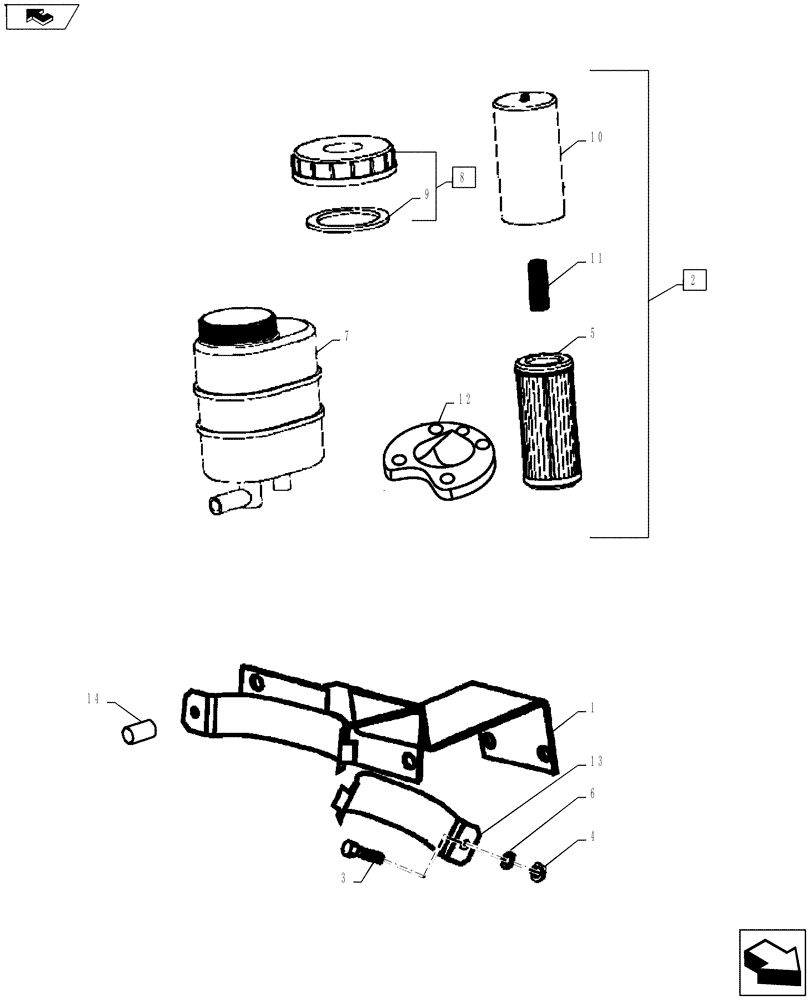

Схема запчастей Case IH FARMALL 65A - (41.200.03) - POWER STEERING RESERVOIR (41) - STEERING
5
4
12
10
7
3
1
11
14
6
home
8
9
13
2

Артикул

Название

Примечание

Количество

1

87373810

SUPPORT

Power Steering Tank

1шт.

2

84264948

RESERVOIR, HYDRAULIC,0.85L

Power Steering, Includes Ref. 5,7-8, 10-12

1шт.

3

10902824

BOLT,Hex, M6 x 30mm, Cl 8.8

1шт.

4

15896211

NUT,M6, Cl 8

1шт.

5

1909143

FILTER

1шт.

6

12640601

WASHER,6.15mm ID x 25mm OD x 2mm Thk

1шт.

7

84264959

RESERVOIR, COOLANT E

Tank

1шт.

8

84264968

PLUG

Includes Ref. 9

1шт.

9

5106750

SEAL,50mm ID x 66mm OD x 3mm Thk

1шт.

10

84264954

CASING

Housing

1шт.

11

5103058

SPRING,Cylindrical, 12.5mm OD x 70mm L

1шт.

12

84345190

Buffle, Steering Oil Reservoir

1шт.

13

5085974

BRACKET

1шт.

14

82824125

SPACER

1шт.

15

10788211

NUT,M10, Cl 8

Not Illustrated

2шт.

16

82824062

BOLT,M12 x 1.75 x 20mm

Not Illustrated

1шт.

17

10571979

LOCK WASHER,M12

Not Illustrated

1шт.

Выбрано товаров: 17
