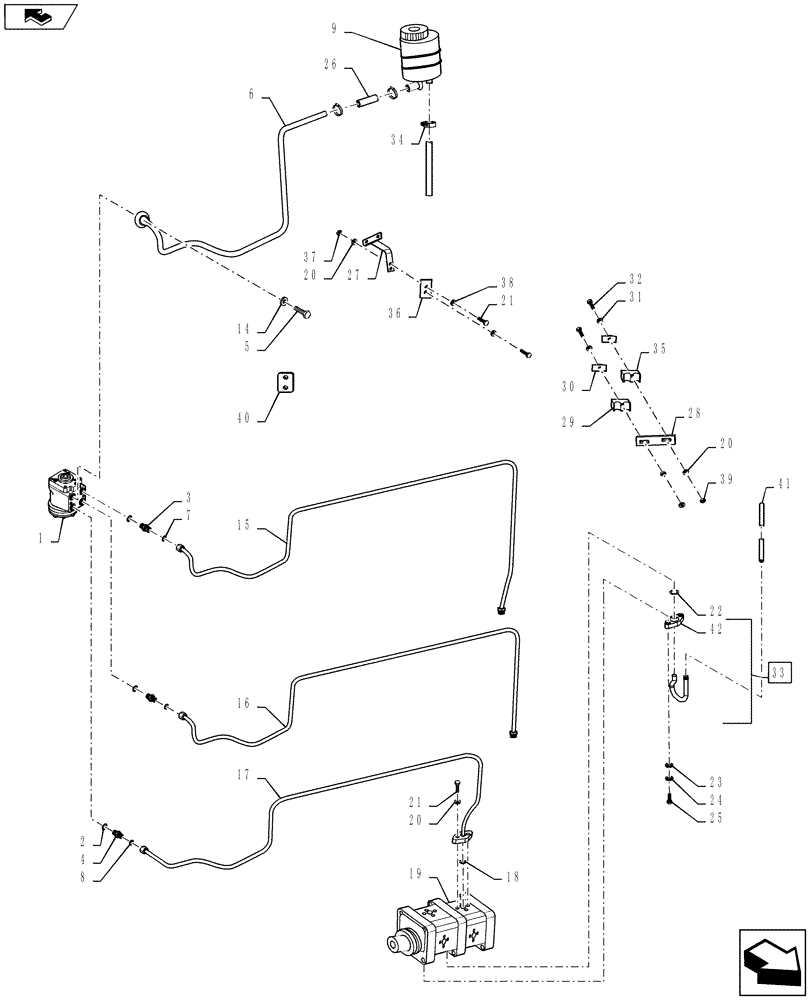

Запчасти Case IH FARMALL 65A (41.200.02) - STEERING RESERVOIR TO PUMP CIRCUIT (41) - STEERING

1

82851795

MOTOR-PUMP

Power, 2WD

1шт.

82851795R

REMAN-HYD PUMP

FARMALL 65A (11/10-), FARMALL 75A

1шт.

82851795C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

84579933

Steering Valve

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

3

82936641

ADAPTER

2шт.

4

82936640

HYD CONNECTOR

1шт.

5

87329602

BANJO BOLT

1шт.

6

84150301

RIGID TUBE

Power Steering Return

1шт.

7

81844851

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

8

81845038

O-RING,0.5" ID x 0.07" Thk

1шт.

9

84264948

RESERVOIR, HYDRAULIC,0.85L

Tank, Power Steering Includes Ref. 10-12

1шт.

10

84264952

RESERVOIR, HYDRAULIC

Not Illustrated

1шт.

11

1909143

FILTER

Not Illustrated

1шт.

12

84264968

PLUG

Cap w/Seal Includes Ref. 13, Not Illustrated

1шт.

13

5106750

SEAL,50mm ID x 66mm OD x 3mm Thk

Not Illustrated

1шт.

14

10257460

SEAL,M20.3 x 26 x 1.5

2шт.

15

84150303

RIGID TUBE

, Serial Range: Motor-Cyl.A

1шт.

16

84150304

RIGID TUBE

, Serial Range: Motor-Cyl.B

1шт.

17

84150302

RIGID TUBE

1шт.

18

83900127

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

1шт.

19

84150306

HYDRAULIC PUMP,14.3 CC

Tandem

1шт.

20

12601279

WAVE WASHER,6.40mm ID x 12mm OD x 0.50mm, 2.60mm H, STL, ZND

8шт.

21

15970421

SCREW,Hex, M10 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

22

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

23

12647121

WASHER,8.15mm ID x 20mm OD x 3mm Thk

2шт.

24

10569379

LOCK WASHER

2шт.

25

14306421

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 8.8

2шт.

26

87729796

HOSE,15.5mm ID x 180mm L

Oil Tank Steering

1шт.

26

84543681

HOSE

Hose, Oil Tank Steering

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

27

87395043

BRACKET

1шт.

28

82834147

SUPPORT

Plate

1шт.

29

83935164

CLAMP

Steering Pipe

1шт.

30

84177887

CLAMP

Clamp, Steering Pipe

4шт.

31

83926806

WASHER,1/4", SAE

2шт.

32

10903421

BOLT,Hex, M6 x 45mm, Cl 8.8

2шт.

33

84150300

RIGID TUBE

Pipe Suction Assy., Power Steering. Includes Ref 42, Years: -31-JAN-12

1шт.

33

84545774

PRESSURE PIPE

Pipe Suction Assy., Power Steering Includes Ref. 42, Start Year: 01-FEB-12

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

34

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

Worm Drive

4шт.

35

82834146

CLAMP

1шт.

36

5126927

CLIP

1шт.

37

12164711

NUT,M10 x 1.25, Cl 8

2шт.

38

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

39

15896211

NUT,M6, Cl 8

2шт.

40

4999560

COLLAR

1шт.

41

84551260

HOSE

Hose Power Steering

1шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

42

82834145

Flange - Inlet Pipe

1шт.
