Запчасти Case IH FARMALL 65A (41.200.01[02]) - STEERING CYLINDER HOSES - 4WD (41) - STEERING

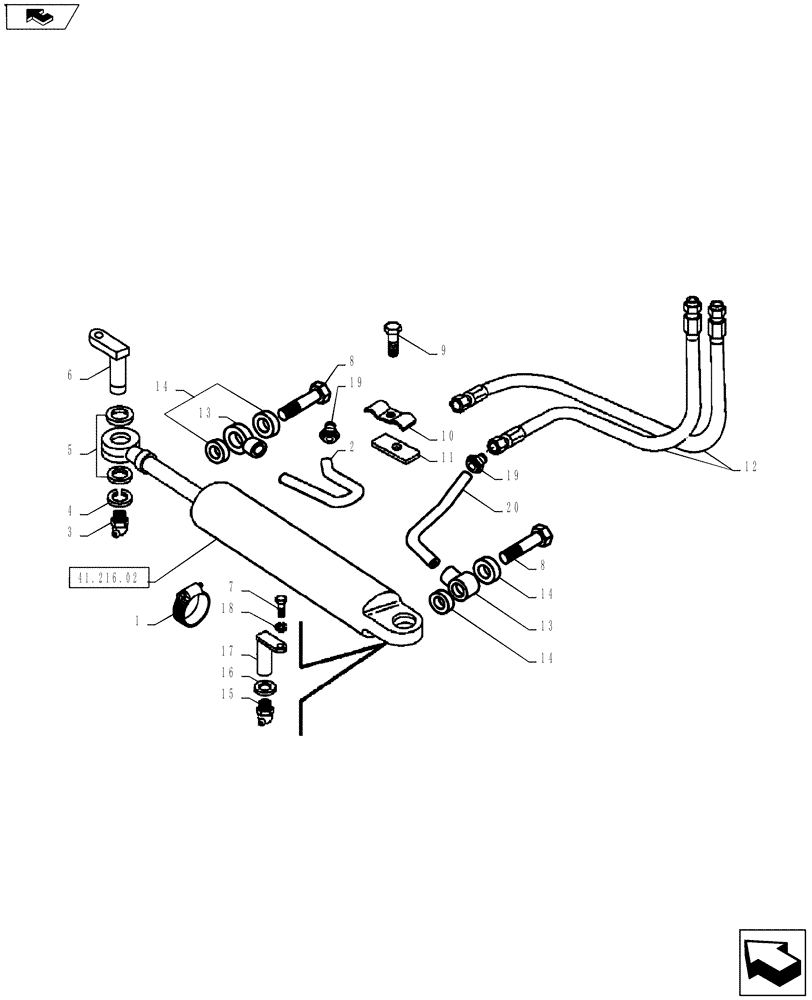

Схема запчастей Case IH FARMALL 65A - (41.200.01[02]) - STEERING CYLINDER HOSES - 4WD (41) - STEERING
10
17
8
19
2
14
19
3
14
4
7
home
1
13
41.216.02
16
13
9
14
8
12
4121602
5
11
20
15
18
6

Артикул

Название

Примечание

Количество

1

13000890

HOSE CLAMP,50mm - 70mm, Worm Gear

1шт.

2

87471632

RIGID TUBE

Incl 13, 19

1шт.

3

13406811

LUBE NIPPLE,45 Degree, 1/4" NPT x .81" lg

1шт.

4

11066876

SNAP RING,M20, Ext

1шт.

5

5100730

WASHER,20.5mm ID x 28mm OD x 5.25mm Thk

2шт.

6

5173252

PIN,19.98mm OD x 79.5mm L

1шт.

7

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

8

10184311

BANJO BOLT,M14 x 1.5 x 27mm

2шт.

9

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

1шт.

10

4999554

CLAMP,2 Hoses

1шт.

11

5138294

SUPPORT

1шт.

12

87736977

FLEXIBLE HOSE

850mm L

2шт.

REQUIRES SERIAL NUMBER BREAK

1шт.

12

84589726

HOSE

FLEXIBLE HOSE, 850mm L

2шт.

13

NLS

NO LONGER SERVICED

Must Order RIGID TUBE

2шт.

14

44906168

SEAL,14.86mm ID x 22.23mm OD x 3mm Thk

4шт.

15

13406911

LUBE NIPPLE,Straight, 1/4"-28 x 0.54"

1шт.

16

5142223

SPACER,20.5mm ID x 28mm OD x 16mm L

1шт.

17

5165265

PIN,19.99mm OD x 100mm L

1шт.

18

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

1шт.

19

NLS

NO LONGER SERVICED

Must Order RIGID TUBE

2шт.

20

87471633

RIGID TUBE

Incl 13, 19

1шт.

Выбрано товаров: 22
