(41.200.01[01]) - STEERING CYLINDER HOSES - 2WD

Запчасти Case IH FARMALL 65A (41.200.01[01]) - STEERING CYLINDER HOSES - 2WD (41) - STEERING

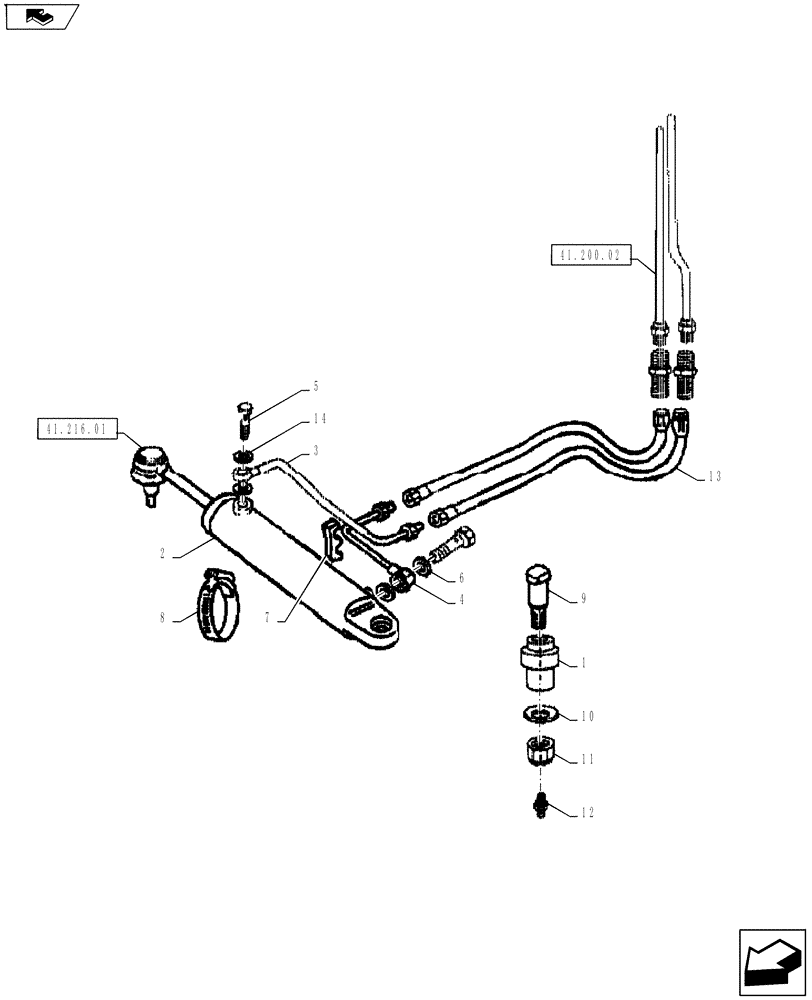

Схема запчастей Case IH FARMALL 65A - (41.200.01[01]) - STEERING CYLINDER HOSES - 2WD (41) - STEERING
41.200.02
14
2
10
4
9
8
3
1
7
11
12
13
5
6
home
41.216.01
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

5102972

BUSHING,20mm ID x 42mm OD x 41mm L

Cylinder Pivot (To Be Fitted In Front Axle)

1шт.

2

84249611

STEERING CYLINDER,22mm Rod, 215mm Stroke

OGNIBENE

1шт.

3

5120999

TUBE

RH

1шт.

4

5120997

HYD TUBE

LH

1шт.

5

10184311

BANJO BOLT,M14 x 1.5 x 27mm

Alternate Part 4999610

2шт.

6

10280060

SEAL,M14.2 x 20 x 1.5

4шт.

7

5121043

SPACER

Rubber

1шт.

8

13000990

COLLAR,60mm - 80mm, Worm Gear

1шт.

9

4997697

PIN,20mm OD x 80mm L

1шт.

10

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

1шт.

11

12576014

NUT,Prevailing Torque, M18, 1.5mm Pitch, 16.00mm High, Cl 04, DAC

1шт.

12

82824207

LUBE NIPPLE

Straight, Alternate Part 13406911

1шт.

13

5126507

FLEXIBLE HOSE,8mm ID x 510mm L, SAE 100R2

Steering Cylinder, M16 x1.5, D8 x 510, Serial Range: -`0

2шт.

Requires Serial Number Break

1шт.

13

84597135

HOSE

FLEXIBLE HOSE, Steering Cylinder, M16 x1.5, D8 x 510

2шт.

14

4999561

SPACER

1шт.
