Запчасти Case IH FARMALL 65A (41.106.02) - STEERING ARMS - 2WD (41) - STEERING

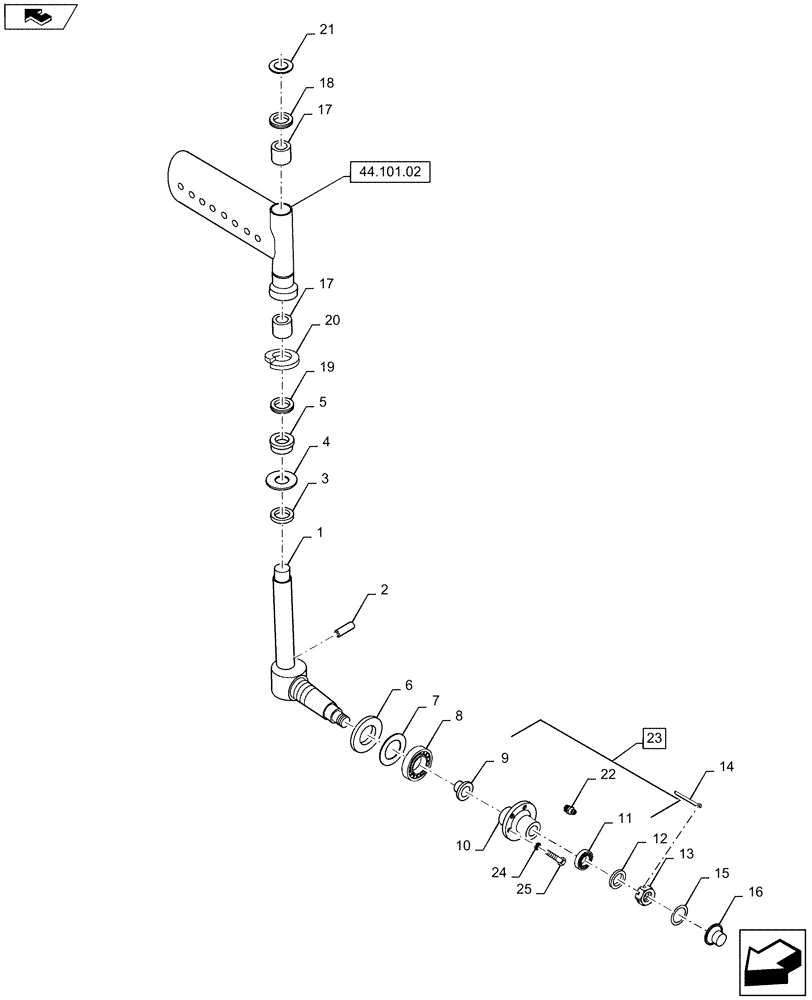

Схема запчастей Case IH FARMALL 65A - (41.106.02) - STEERING ARMS - 2WD (41) - STEERING
20
1
9
24
6
23
2
18
5
15
7
8
12
13
14
44.101.02
home
17
21
10
22
4
25
19
17
11
16
3

Артикул

Название

Примечание

Количество

1

87483071

SPINDLE

LH

1шт.

1

87483070

SPINDLE

RH

1шт.

2

82822563

PIN,4mm OD x 13mm L

Steering Knuckle

2шт.

3

82833897

SEAL,57mm ID x 68mm OD x 9.8mm Thk

Seal Dust Cover

2шт.

4

82833509

SEAL,59mm ID x 85.4mm OD x 5mm Thk

Dust Cover, Lower

2шт.

5

82824201

THRUST WASHER,38mm ID x 62mm OD x 27mm Thk

Stg. Knuckle

2шт.

6

82827173

SHIELD

Mud

2шт.

7

82827172

COVER,50.1mm ID x 73.3mm OD x 4mm Thk

Mud

2шт.

8

82834181

SEAL,50mm ID x 74mm OD x 10mm Thk

Front Wheel Hub

2шт.

9

87304741

SLEEVE,74mm ID x 90mm OD x 13.8mm L

Hub Front Wheel

2шт.

10

NS

NOT SERVICED

Front Wheel Couple, Hub, Front Wheel (87699322)

2шт.

11

84346529

ROLLER BEARING,28.57mm ID x 57.15mm OD x 19.84mm W

Taper 1988/1922 28.57..ID

2шт.

12

87692069

WASHER,20.5 mm ID x 49 mm OD x 3.4 mm

Tapper 1988/1922 28.57..ID

2шт.

13

10724720

SLOTTED NUT,M20 x 1.5

Castle

2шт.

14

10733801

COTTER PIN,M4 x 36

2шт.

15

14460180

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

16

82833551

PLUG,Cap hub front AXLE

2шт.

17

82833489

BUSHING,38.05mm ID x 48.04mm OD x 40mm L

End Axle

4шт.

18

82833544

SEAL,36.4mm ID x 50.9mm OD x 6mm Thk

Upper

2шт.

19

82833546

SEAL,59.9mm ID x 86mm OD x 10mm Thk

Lower

2шт.

20

82833512

THRUST WASHER,38mm ID x 71.5mm OD x 4mm Thk

End Axle

2шт.

21

82833508

SEAL,38.2mm ID x 66mm OD x 1mm Thk

2шт.

22

84351730

FITTING,M10 x 1

2шт.

23

84168695

HUB

Assy., Includes Of Ref. 9-10, 12, 23, The Outer Hub Is NSS

2шт.

24

10517379

LOCK WASHER,18.2mm ID x 30.6mm OD x 4mm Thk

12шт.

25

15983824

BOLT,Hex, M18 x 1.5 x 35mm, Cl 8.8

12шт.

Выбрано товаров: 26
