Запчасти Case IH FARMALL 65A (37.140.04) - REAR BALLAST WEIGHTS - 4 BOLT WHEEL AND 6 BOLT WHEEL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

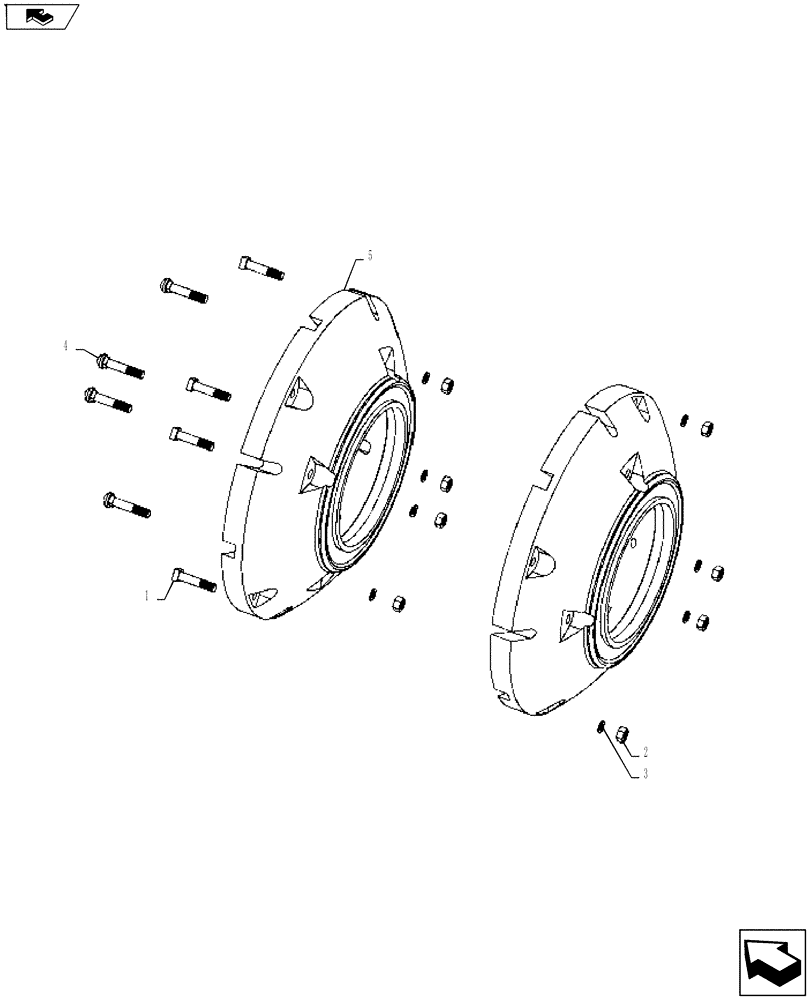

Схема запчастей Case IH FARMALL 65A - (37.140.04) - REAR BALLAST WEIGHTS - 4 BOLT WHEEL AND 6 BOLT WHEEL (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
1
home
4
3
5

Артикул

Название

Примечание

Количество

1

82834002

BOLT

Drive Wheel Ballast Discs, Serial Range: -`0

24шт.

For 2nd & 3rd Weights

1шт.

2

12164014

NUT,M14 x 1.5, Cl 8

40шт.

3

11194174

BELLEVILLE WASHER,M14 Bolt Size x 27mm OD x 3mm Thk

40шт.

4

82833736

BOLT

Screw, M14 x 1.5 x 72 - Front+Drive Wheel Ballast Discs, Serial Range: -`0

16шт.

For 1st Weight

1шт.

5

82833735

WHEEL WEIGHT

Rear Ballast 55 Kg, Serial Range: -`0

10шт.

55 Kg For EX Model

1шт.

6

718128012

DIA KIT, TRAC HYD SY

Not Illustrated, RR Wheel Weight 121 LBS - 55KG Set Of 4 Includes Ref 1-5

1шт.

7

718129012

DIA KIT, TRAC HYD SY

Not Illustrated, RR Wheels Weight 121 LBS - 55KG Set of 6 Includes Ref 1-5

1шт.

Выбрано товаров: 10
