(37.140.01[02]) - WHEEL WEIGHT - REAR - SET OF 6

Запчасти Case IH FARMALL 65A (37.140.01[02]) - WHEEL WEIGHT - REAR - SET OF 6 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

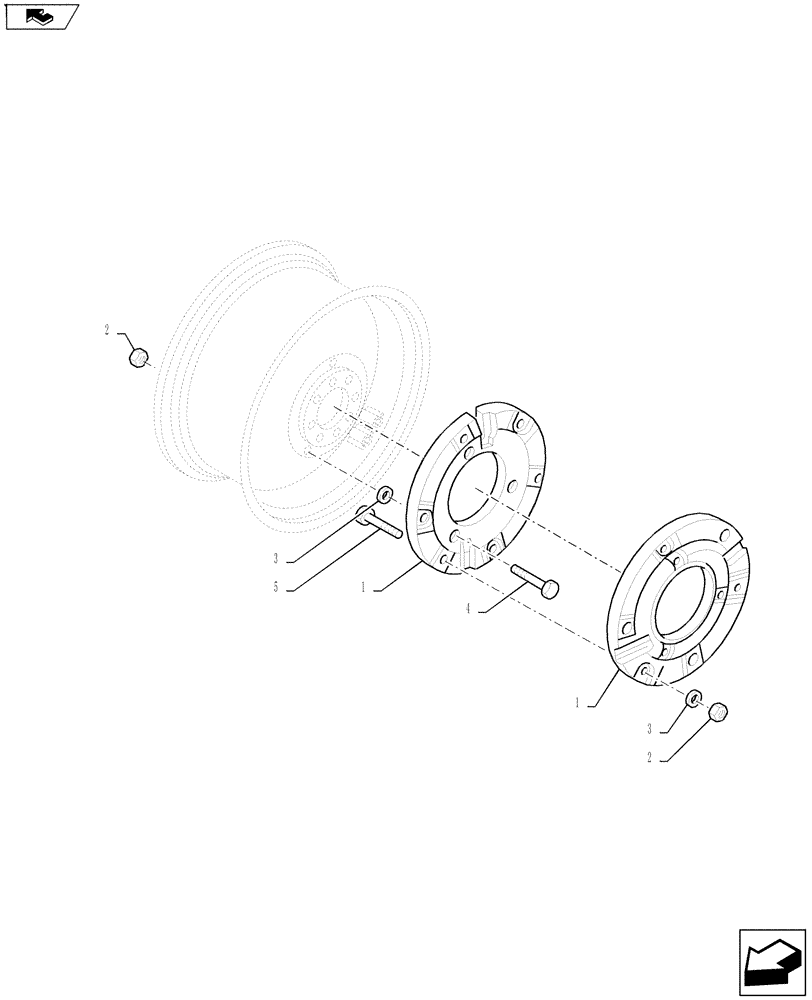

Схема запчастей Case IH FARMALL 65A - (37.140.01[02]) - WHEEL WEIGHT - REAR - SET OF 6 (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
3
1
5
2
3
4
1
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82029581

WEIGHT

50kg

6шт.

2

86512380

FLANGE NUT,M16

18шт.

3

86625266

WASHER,17.5mm ID x 30mm OD x 4mm Thk

12шт.

4

355259

BOLT,Hex, M16 x 65, 8.8

12шт.

5

87552612

CARRIAGE BOLT,Short Sq Nk, M16 x 2 x 60mm, Cl 8.8

6шт.
