Запчасти Case IH FARMALL 65A (37.120.04) - TELESCOPIC LINKAGE STABILIZERS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

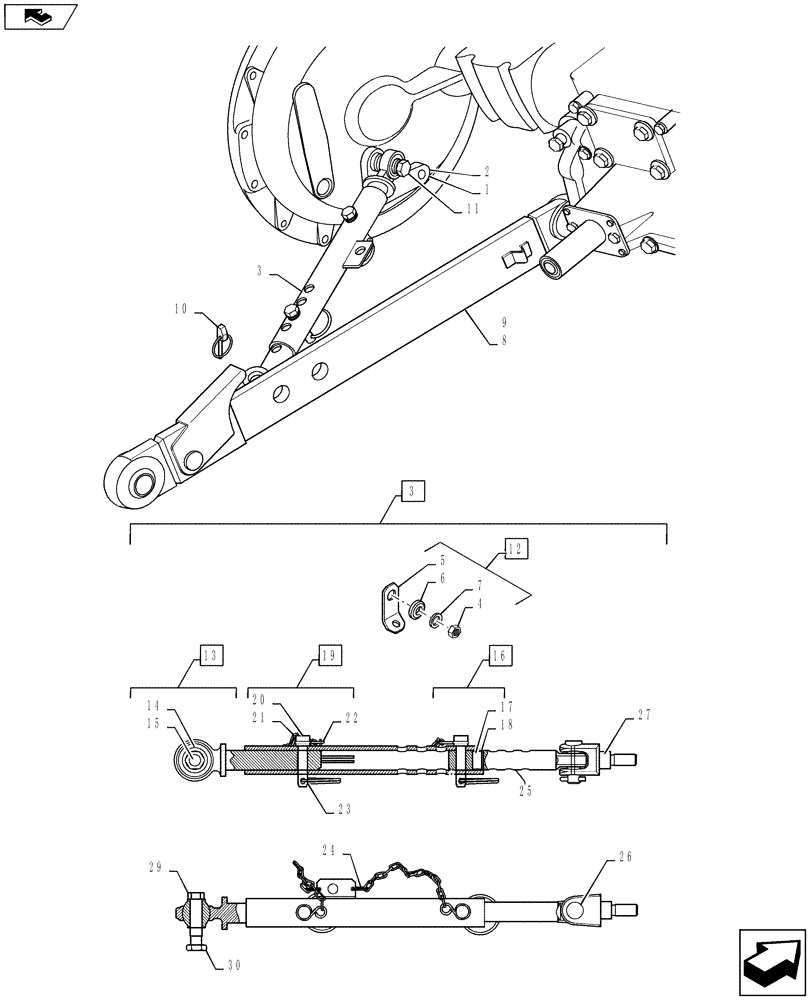

Схема запчастей Case IH FARMALL 65A - (37.120.04) - TELESCOPIC LINKAGE STABILIZERS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
25
26
13
17
4
27
22
home
19
10
7
29
16
2
8
6
3
23
5
3
11
1
20
9
21
30
18
15
14
12
24

Артикул

Название

Примечание

Количество

1

87610402

BRACKET

LH

1шт.

2

87610401

BRACKET

RH

1шт.

3

87741030

STABILIZER

Includes Ref 4-7 & 12-30

2шт.

4

12164211

NUT,M18 x 1.5, Cl 8

2шт.

5

4959777

PLATE

2шт.

6

595050

WASHER,19mm ID x 60mm OD x 15mm Thk

Will Be Replaced by 84546224, Serial Range: -87610402

2шт.

7

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

2шт.

8

87741154

LIFT LINK

LH

1шт.

9

87741155

LIFT LINK

RH

1шт.

10

81810390

LINCH PIN,11.18mm OD

2шт.

11

99771188

NUT

& Bolt

2шт.

12

87740796

STABILIZER

Telescopic Includes Ref 4-7, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

13

84561262

EYEBOLT

Incl 14-15, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

14

84561271

EYEBOLT

, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

15

84561272

BUSHING

Ball, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

16

84561457

TUBE

Adjusting Incl 17-18, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

17

84561458

TUBE

Adjusting, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

18

84561459

PLATE

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

19

84561460

PIN

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

20

84561462

PIN

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

21

84561463

CHAIN LINK

, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

22

84561464

HOOK

, Serial Range: -`0

1шт.

Non Illustrated

1шт.

23

84561466

SPRING

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

24

84561468

RING

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

25

84561469

ROD

Head, Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

26

84561471

PIN

Stabilizer

1шт.

27

84561475

ROD

Yok, Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

28

84561476

SPLIT PIN

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

29

84561477

PIN

Stabilizer, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

30

84561478

LOCK NUT

M18x1.5, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.

Выбрано товаров: 48
