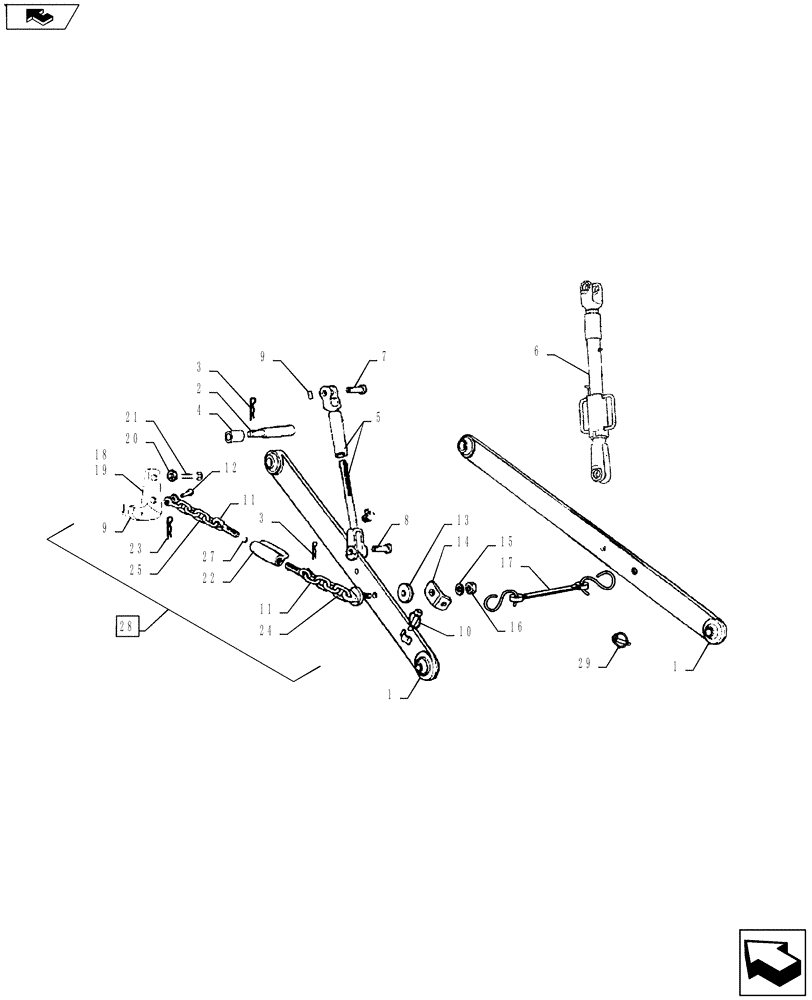

Запчасти Case IH FARMALL 65A (37.120.03) - LIFT LINKS AND LOWER LINKS (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

87741161

TOP LINK

Lower

2шт.

2

82824691

PIN,28mm OD x 192mm L

Lower Link

2шт.

3

82824022

COTTER PIN,12.25mm x 95.5mm L

8шт.

4

82834029

BUSHING,22.3mm ID x 28.48mm OD x 34mm L

2шт.

5

87540085

LIFTING ROD

LH, Includes Ref. 30

1шт.

6

87672904

ROD

Jug and Collar Lift, RH, Includes Ref 30

1шт.

7

47126271

PIN,22mm OD x 84mm L

Upper, Lift rods

2шт.

8

574882

PIN

Lower, Lift rods

2шт.

9

82824613

COTTER PIN

4шт.

10

81810390

LINCH PIN,11.18mm OD

2шт.

11

87740799

CHAIN

Check, Includes Ref. 9, 12-16, 28

2шт.

12

568910

CLEVIS PIN,6.3mm OD x 47mm L

4шт.

13

595050

WASHER,19mm ID x 60mm OD x 15mm Thk

2шт.

14

4959777

PLATE

2шт.

15

82827154

BELLEVILLE WASHER,19mm ID x 36mm OD x 3.6mm Thk

Lower Link

2шт.

16

12164211

NUT,M18 x 1.5, Cl 8

2шт.

17

84226695

RUBBER STRIP

Rubber Strap Assy.

1шт.

18

87741159

SUPPORT

Check Chain, RH same as 5129680

1шт.

19

87741158

SUPPORT

Check, Chain, LH same as 5129682

1шт.

20

10517274

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

4шт.

21

11390524

BOLT,Hex, M16 x 1.5 x 40mm, Cl 8.8

4шт.

22

584731

ADJUSTING SLEEVE,140mm L

2шт.

23

5085461

COTTER PIN

4шт.

24

NSS

NOT SOLD SEPARAT

Chain, Rear

2шт.

25

NSS

NOT SOLD SEPARAT

Chain, Front

2шт.

26

87672904

ROD

Jug and Collar Lift, RH (Optional, Replaces Ref. 6)

1шт.

27

82824930

LOCK WASHER

2шт.

28

82834022

CHAIN

Includes Ref. 12, 22-25, 27

2шт.

29

5166585

LOCK PIN,11mm OD

3шт.

30

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

, Serial Range: -`0

1шт.

NOT ILLUSTRATED

1шт.
