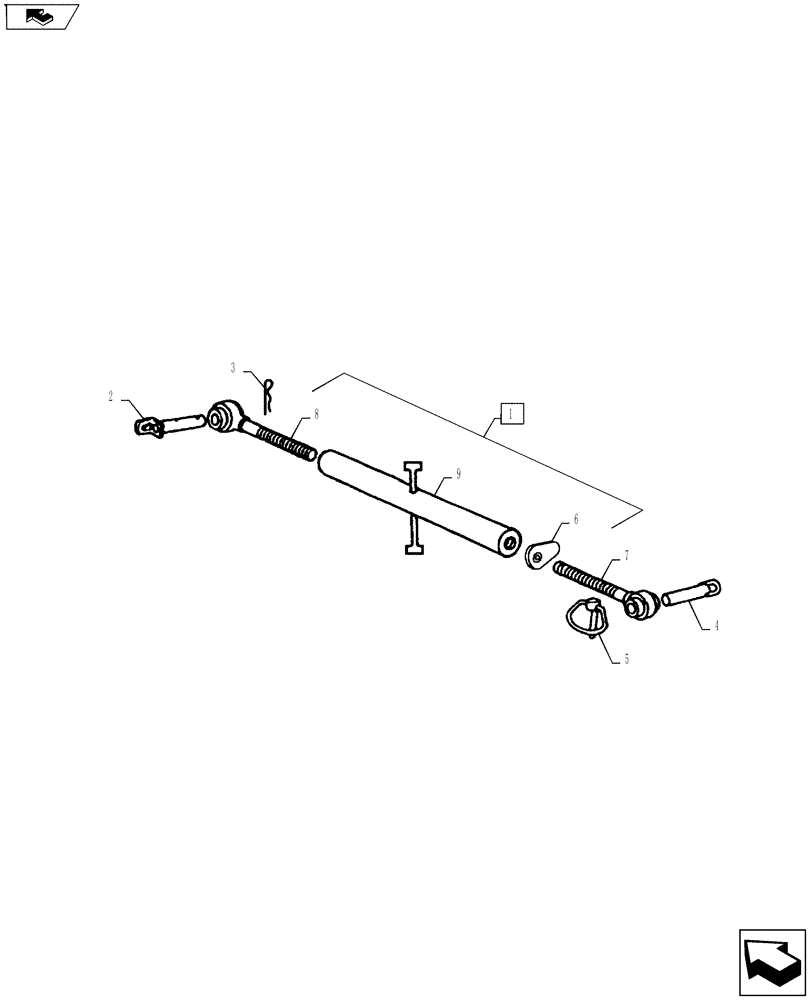

Запчасти Case IH FARMALL 65A (37.120.02) - TOP LINK (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

82826752

TOP LINK

Includes Ref. 6-9

1шт.

2

598549

PLATE

Front End

1шт.

3

82824022

COTTER PIN,12.25mm x 95.5mm L

1шт.

4

82834152

PIN

Rear End

1шт.

5

81810390

LINCH PIN,11.18mm OD

1шт.

6

82824640

LOCK

Lock, Top Link

1шт.

7

82834016

LIFT LINK END ASSY

Ball, Cat-II

1шт.

8

82834015

LIFT LINK END ASSY

Ball, Cat-I

1шт.

9

82824642

SLEEVE

Adjustment

1шт.
