(37.100.02) - HITCH DRAWBAR KIT

Запчасти Case IH FARMALL 65A (37.100.02) - HITCH DRAWBAR KIT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

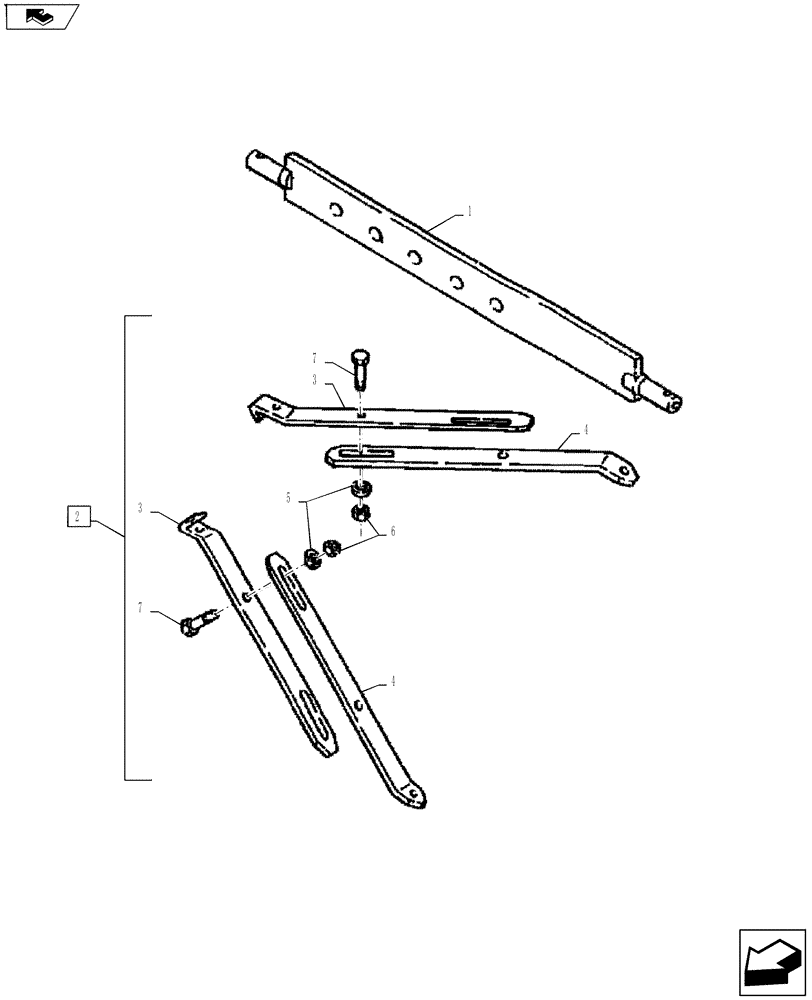

Схема запчастей Case IH FARMALL 65A - (37.100.02) - HITCH DRAWBAR KIT (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS
2
3
7
4
1
home
6
4
7
3
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

251006F

DRAWBAR

1шт.

Requires The Use Of Drawbar Stay Kit (Ref. 2) When Installing Linkage Drawbar.

1шт.

2

FONNC830AA

DRAWBAR

Stay, Cat. 1, Includes Ref. 3-7

1шт.

3

86539332

STAY

Upper

2шт.

4

86539333

STAY

Lower

2шт.

5

351428S8

WASHER,7/16" x 7/8" x 1/8" Thk

4шт.

6

50456

NUT,7/16"-20, G5

4шт.

7

304706S36

BOLT,Hex, 7/16"-20 x 1 1/8", G5

4шт.

Выбрано товаров: 8
