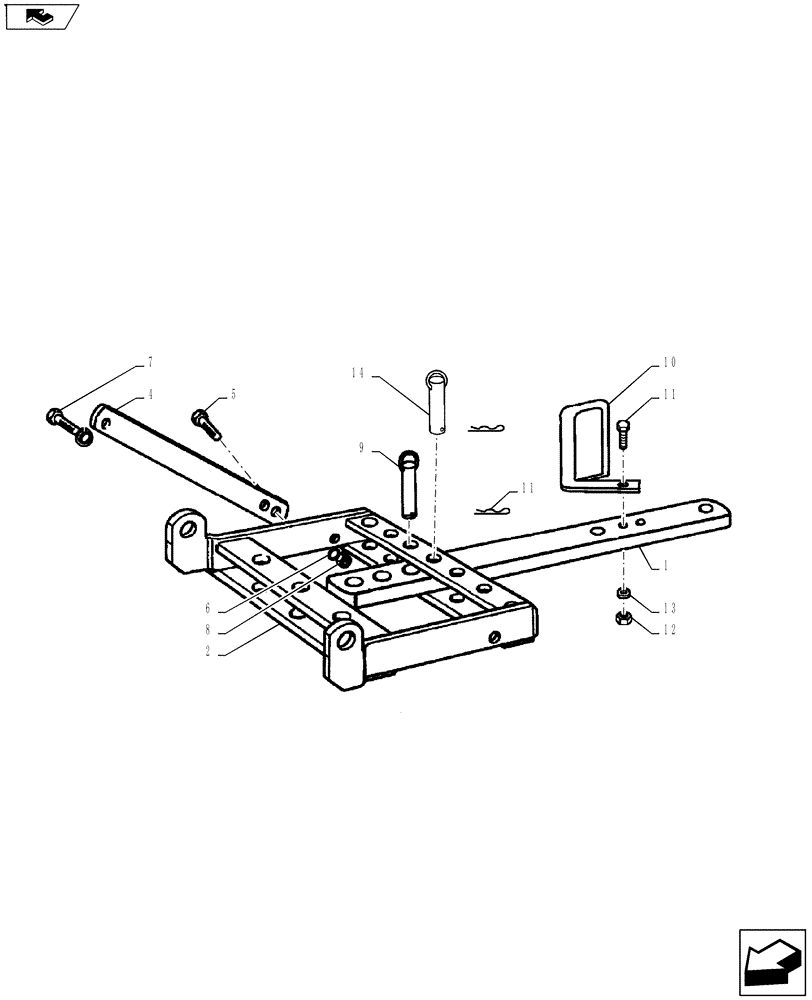

Запчасти Case IH FARMALL 65A (37.100.01) - SWINGING DRAWBAR (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

47375437

DRAWBAR

Swinging

1шт.

2

87375659

DRAWBAR SUPPORT

1шт.

3

82824022

COTTER PIN,12.25mm x 95.5mm L

4шт.

4

87377442

SUPPORT

Drawbar

2шт.

5

11408624

SCREW,Hex, M20 x 1.5 x 45mm, Cl 8.8, Full Thd

2шт.

6

82827155

CONE WASHER

Lock, 20 x 38 x 4.6

4шт.

7

11383624

SCREW

Cap. Hex., M20 x 1.5 x 50

2шт.

8

12164314

NUT,M20 x 1.5

M20

2шт.

9

87726851

PIN

Pivot, Towing Bar Rear

2шт.

10

87302456

SUPPORT

Chain, Drawbar

1шт.

11

15981121

BOLT,Hex, M16 x 1.5 x 60mm, Cl 8.8

1шт.

12

12164114

NUT,Hex, M16, 1.5mm Pitch, 13mm High, Cl 8

1шт.

13

11194279

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 3.4mm Thk

1шт.

14

47615380

PIN

Towing Bar Front Pivot

1шт.
