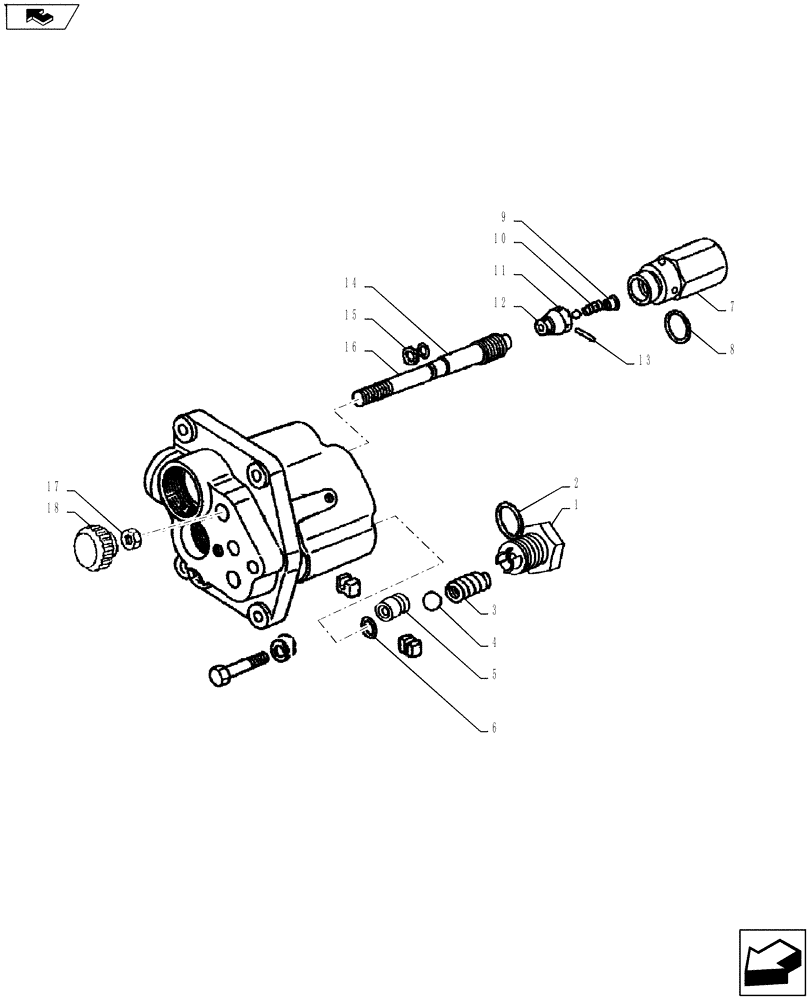

Запчасти Case IH FARMALL 65A (35.114.01[02]) - LIFT CONTROL VALVE - PRESSURE RELIEF (35) - HYDRAULIC SYSTEMS

1

5162608

PLUG,M24 x 1.5

Non Return Valve

1шт.

2

14457581

O-RING,0.799" ID x 0.103" Width

1шт.

3

5156289

SPRING,Compression, 8.5mm OD x 25.5mm L

L = 25.5, D = 8.5

1шт.

4

20063580

BALL,13.49mm OD, Gr 100

D = 17/32"

1шт.

5

5156290

VALVE SEAT,20mm OD x 12mm Thk

Return

1шт.

6

14457281

O-RING,0.612" ID x 0.103" Width

2шт.

7

87604912

VALVE BODY,M20 x 1.5

Pressure Relief

1шт.

8

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

9

5190541

BUSHING,6.4mm ID x 8mm OD x 3.5mm L

Nylon

1шт.

10

596854

SPRING

L = 13, D = 10

1шт.

11

20063430

BALL,4.76mm OD, Gr 100

D = 3/16

1шт.

12

5190125

VALVE PRESSURE RELIE

Return

1шт.

13

14163670

ROLL PIN,M4 x 14, Slotted

1шт.

14

5117741

PIN

Return Valve

1шт.

15

5120772

O-RING,1.78mm Thk x 6.75mm ID, 85 Duro

4.78 x 6.75

1шт.

16

5120771

WASHER,6.73mm ID x 9.43mm OD x 1.14mm Thk

1шт.

17

10791014

NUT,M10 x 1.25, Cl 04

1шт.

18

5120798

KNOB

1шт.
