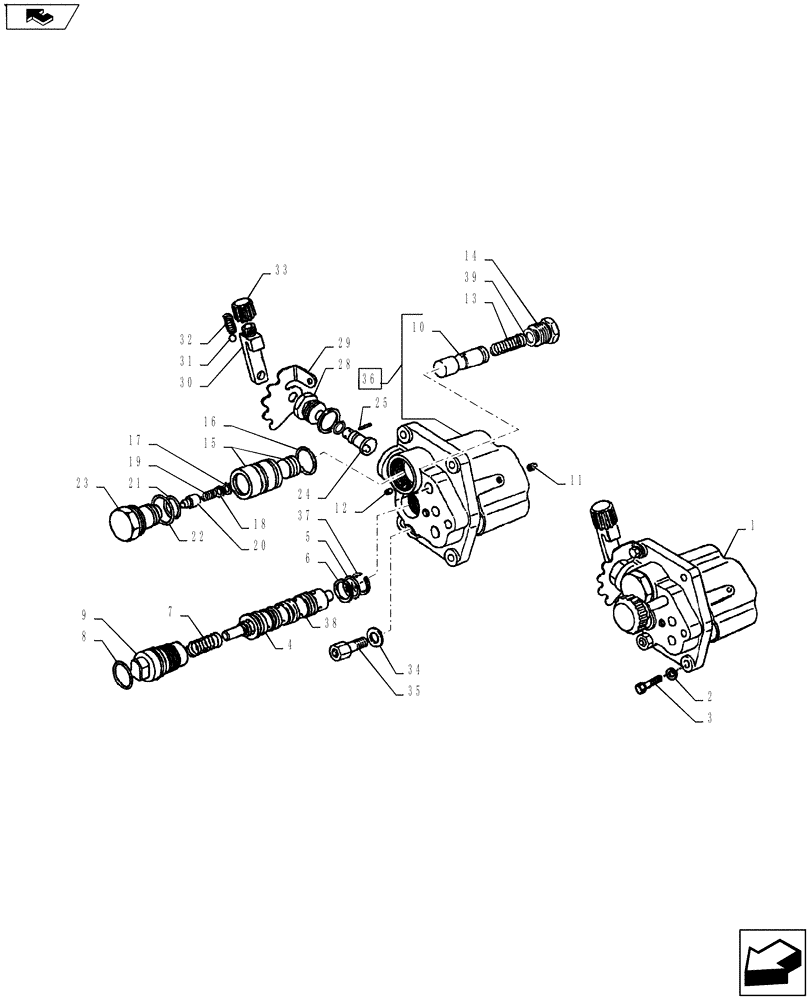

Запчасти Case IH FARMALL 65A (35.114.01[01]) - LIFT CONTROL VALVE - FLOW CONTROL (35) - HYDRAULIC SYSTEMS

1

84211833

HYDRAULIC VALVE

Lift

1шт.

2

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

4шт.

3

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

4шт.

4

5169834

VALVE

With Spool

1шт.

5

5117726

WASHER,17.83mm ID x 22.19mm OD x 1.14mm Thk

2шт.

6

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

4шт.

7

4973361

SPRING,Compression, 15.5mm OD x 50.5mm L

1шт.

8

14453980

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

1шт.

9

5117725

PLUG,M27 x 1.5

Seat

1шт.

10

5117727

SPOOL,16mm OD x 50mm L

1шт.

11

5162458

PLUG,M10 x 1.25

Allen, M10

2шт.

12

10269150

PLUG,M6 x 1 x 60mm L

Allen, M6

3шт.

13

5117729

SPRING,Compression, 11mm OD x 44mm L

1шт.

14

5117734

PLUG,M20 x 1.5

1шт.

15

5117731

SPOOL

Seat Assy., With Piston

1шт.

16

14454081

O-RING,1.051" ID x 0.07" Width

1шт.

17

13420376

SNAP RING,M12, Int

1шт.

18

5122030

SPRING WASHER,5mm ID x 11.7mm OD x 3mm Thk

Spring

1шт.

19

5115469

SPRING,Compression, 7.7mm OD x 14.5mm L

1шт.

20

5117732

PIN,10.5mm OD x 15.5mm L

Flow Control Valve

1шт.

21

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

1шт.

22

14458081

O-RING,1.112" ID x 0.103" Width

1шт.

23

5122029

PLUG,M32 x 1.5

Adjusting

1шт.

24

5117735

PIN,12mm OD x 40.5mm L

Adjusting

1шт.

25

14161770

LOCK PIN,M3 x 16, Slotted

1шт.

26

575094

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

M8.73 ID x 1.78 Thk

1шт.

27

10279560

SEALING WASHER,22.3mm ID x 28mm OD x 1mm Thk

1шт.

28

5120760

PLUG,M22 x 1.5

Adjusting

1шт.

29

5120763

SECTOR

TOOTHED SECTOR Adjusting

1шт.

30

5117736

LEVER,M14 x 1.5

Adjusting Pin

1шт.

31

20063470

BALL,7.9mm OD

D = 7

1шт.

32

5120761

SPRING,7.7mm OD x 20.5mm L

L = 20.5, D = 7

1шт.

33

5163958

KNOB

1шт.

34

10296160

SEALING WASHER,M12.2 x 18 x 1, Copper

1шт.

35

14360524

HEX SOC SCREW,M12 x 1.25 x 20mm, Cl 8.8, Full Thd

1шт.

36

5117743

BODY

Control Valve with Plugs, Includes Ref. 10

1шт.

37

5122414

SNAP RING

1шт.

38

5163230

HYDRAULIC VALVE

1шт.

39

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

1шт.
