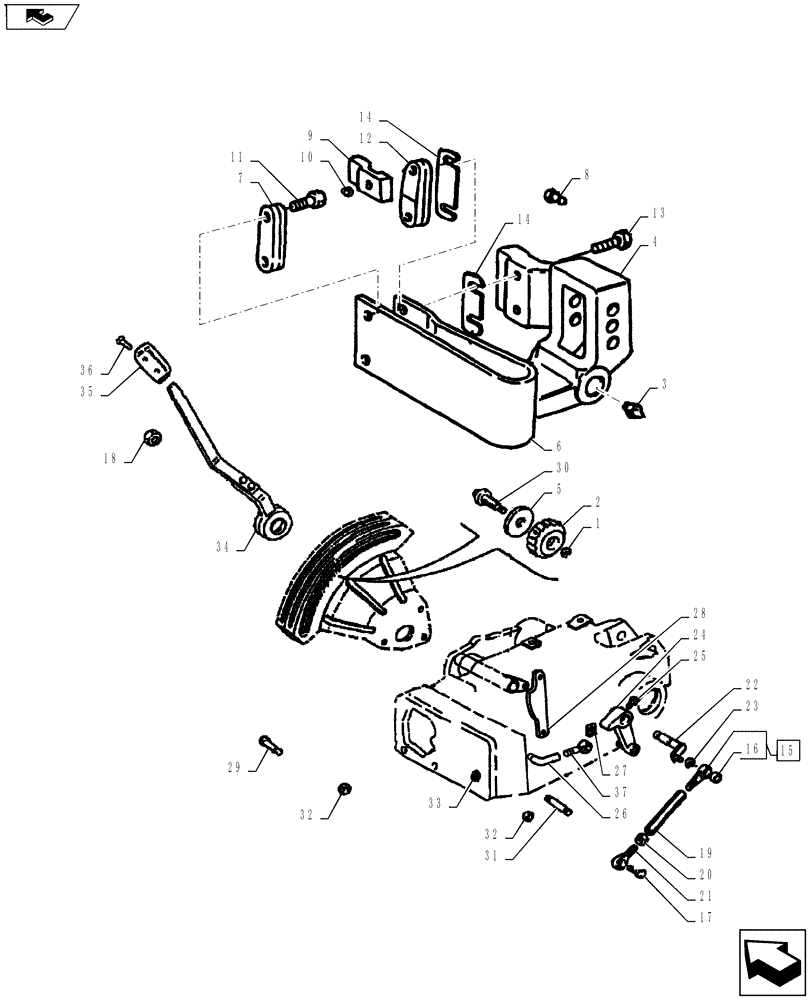

Запчасти Case IH FARMALL 65A (35.112.01) - LOAD SENSING LINKAGE (35) - HYDRAULIC SYSTEMS

1

11065576

SNAP RING,M7, Ext

1шт.

2

82834062

KNOB

1шт.

3

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

2шт.

4

82834137

SUPPORT

Top Link

1шт.

5

12644301

WASHER,M10 x 35 x 3

1шт.

6

82824259

SPRING

Sensing, Top Link

1шт.

7

5146611

PLATE

Attachment, Spring to Lift Body

1шт.

8

5146614

PIN

1шт.

9

5146613

LEVER

Load Control

1шт.

10

11065976

CIRCLIP,M10, Ext

1шт.

11

14254731

LOCK BOLT,Hex, M14 x 1.5 x 45mm, Cl 10.9

Cap, M14 x 1.5 x 45

1шт.

12

598493

PLATE

, Serial Range: Spring-Support

1шт.

13

14254531

BOLT,Hex, M14 x 1.5 x 35mm, Cl 10.9

Hex., M14 x 1.5 x 35

2шт.

14

598495

SHIM,35mm OD x 0.3mm Thk

0.3 MM Thk

1шт.

14

82824095

SHIM

1 MM Thk

1шт.

15

82824209

LINK

Includes Ref. 16

1шт.

16

5112121

BUSHING,12.13mm ID x 17.08mm OD x 12mm L

2шт.

17

82824204

SCREW,M10 x 1.25 x 1.25mm

Special

1шт.

18

10790111

NUT,M10 x 1.25, Cl 8

Thin, M12 x 1.5 Cl 04

1шт.

19

5144183

TURNBUCKLE,M12 x 1.5

1шт.

20

10791211

THIN NUT,Thin, M12 x 1.5, Cl 04

1шт.

21

5117779

EYEBOLT,M12 x 1.5

Right with Bush

1шт.

22

5086074

SPINDLE

1шт.

23

11066076

SNAP RING,M12, Ext

1шт.

24

5144179

LEVER

Load Control Arm Assy.

1шт.

25

4968815

SCREW,Hex, M10 x 1.25 x 10mm

M10 x 1.25 x 17

1шт.

26

5136354

ROD

Front

1шт.

27

11064076

CLIP,M8 x 5 x 0.94mm

Safety

3шт.

28

5122497

LEVER

Control Cam

1шт.

29

5117161

PIN,8mm OD x 27mm L

1шт.

30

82824114

PIN,10mm OD x 41mm L

1шт.

31

5117136

PIN,8mm OD x 42mm L

1шт.

32

5111028

ROLLER,18mm OD x 10mm L

Arm

2шт.

33

11065676

SNAP RING,M8, Ext

1шт.

34

82824553

LEVER

Draft Control

1шт.

35

82834066

KNOB

Lift Control Lever

1шт.

36

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

37

5136355

TIE-ROD,M8 x 1, 48mm L

Rear

1шт.
