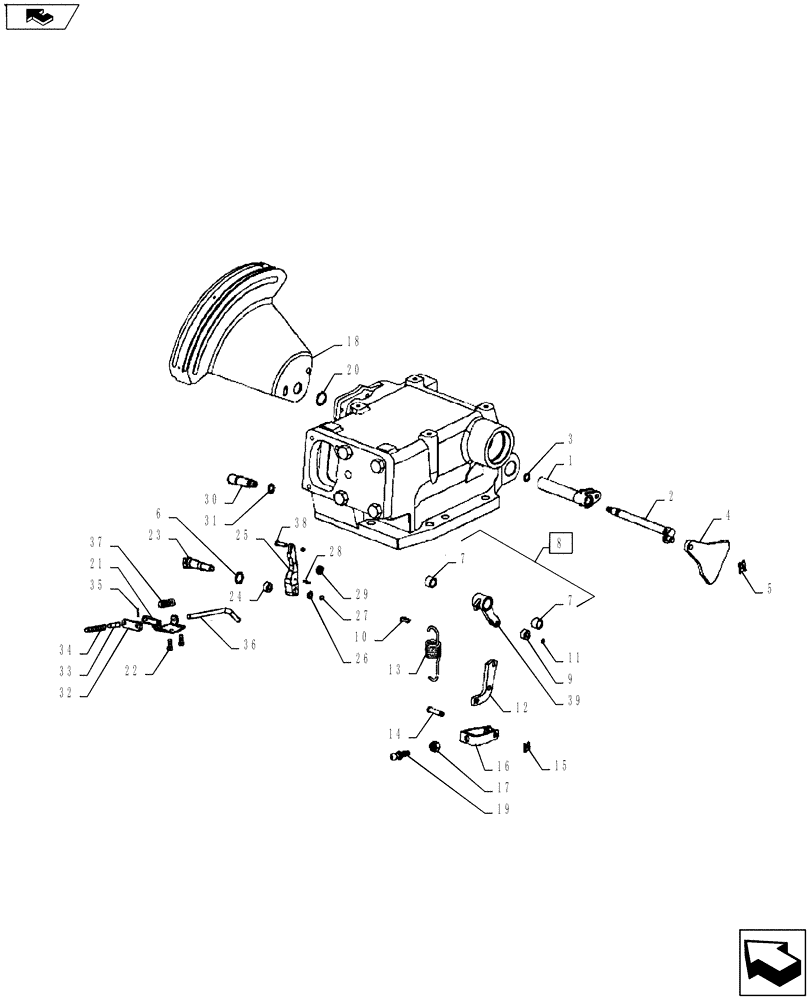

Запчасти Case IH FARMALL 65A (35.110.05) - POSITION CONTROL LINKAGE (35) - HYDRAULIC SYSTEMS

1

82824284

Load Control

1шт.

2

5122530

SHAFT

Position Control

1шт.

3

14453080

O-RING,0.426" ID x 0.07"

1шт.

4

5117143

LEVER

Position Control

1шт.

5

11064176

CLIP,M10 x 8mm

Safety

1шт.

6

10263460

SEAL,22.3mm ID x 28mm OD x 1.5mm Thk

2шт.

7

84152231

BUSHING

Control Link

2шт.

8

84153808

TOP LINK

Includes Ref. 7

1шт.

9

5111028

ROLLER,18mm OD x 10mm L

1шт.

10

5117136

PIN,8mm OD x 42mm L

1шт.

11

11065676

SNAP RING,M8, Ext

2шт.

12

5120291

LEVER

Control Link, Distributor

1шт.

13

5148884

SPRING,Extension, 28mm OD x 84mm L

1шт.

14

5011775

PIN,8mm OD x 32.8mm L

1шт.

15

11064076

CLIP,M8 x 5 x 0.94mm

Safety

2шт.

16

5125917

CLEVIS

Control Valve Lever

1шт.

17

10791014

NUT,M10 x 1.25, Cl 04

1шт.

18

82824115

SECTOR

Control Lever

1шт.

19

5120282

BOLT,M10 x 1.25 x 25mm

1шт.

20

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

21

5146615

SUPPORT

1шт.

22

14306321

HEX SOC SCREW,M8 x 20mm, Cl 8.8

2шт.

23

84152215

PIN

1шт.

24

84152227

BUSHING

1шт.

25

84152228

HYDRAULIC VALVE

Lever For Control

1шт.

26

5146617

SPACER

1шт.

27

13397576

CIRCLIP,12mm ID

1шт.

28

14162070

LOCK PIN,M3 x 22, Slotted

1шт.

29

5116251

SPACER,14.1mm ID x 19mm OD x 5mm L

1шт.

30

82824430

SHAFT

1шт.

31

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

32

87589929

END

Pad

1шт.

33

5121523

NUT,M8 x 1.25 x 26mm

Adjustment

1шт.

34

5121522

ADJUSTMENT SCREW,M8 x 1.25 x 55mm

1шт.

35

14163970

COTTER PIN,M4 x 20, Slotted

1шт.

36

82824617

ROD

1шт.

37

4959139

SPRING,Compression, 15.5mm OD x 71mm L

1шт.

38

5129392

PIN,7.5mm OD x 22.5mm L

1шт.

39

84152230

TOP LINK

1шт.
