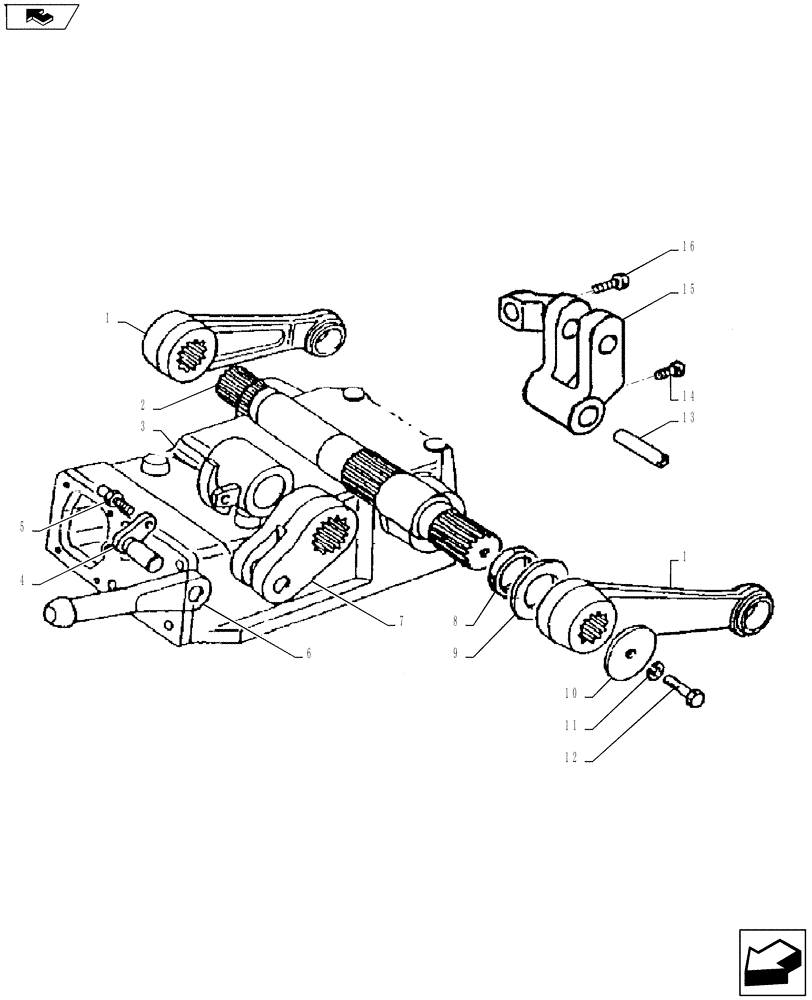

Запчасти Case IH FARMALL 65A (35.110.04) - LIFT HOUSING - LIFT ARMS (35) - HYDRAULIC SYSTEMS

1

87489579

ARM

2шт.

2

5125283

CONTROL SHAFT

Cross

1шт.

3

82824308

SHAFT

Position Lever Control, Supercedes to Mutliple Parts

1шт.

4

5125648

PIN,21.98mm OD x 58.5mm L

Piston Rod

1шт.

5

5125646

SCREW

M10 x 1.25 x 18

1шт.

6

5125647

PISTON ROD

1шт.

7

87553217

POWER UNIT

Power Lift Inside Arm. Ref Part 5125282

1шт.

7

84595465

ARM

Lift Inside Arm, Serial Range: -`0

1шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

8

5125650

OIL SEAL,48mm ID x 65mm OD x 10mm Thk

2шт.

9

84234055

WASHER,47mm ID x 85mm OD x 6mm Thk

2шт.

10

5122898

WASHER,15mm ID x 70mm OD x 7mm Thk

2шт.

11

10572079

LOCK WASHER,M14

Alternate Part 10572071

4шт.

12

11422324

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

2шт.

13

5144280

PIN

, Serial Range: -11/1/2007

1шт.

14

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16 x 1.5 x 32, Conical, Serial Range: -11/1/2007

1шт.

15

87388483

SUPPORT

Top Link, Serial Range: -11/1/2007

1шт.

16

14254731

LOCK BOLT,Hex, M14 x 1.5 x 45mm, Cl 10.9

, Serial Range: -11/1/2007

1шт.
