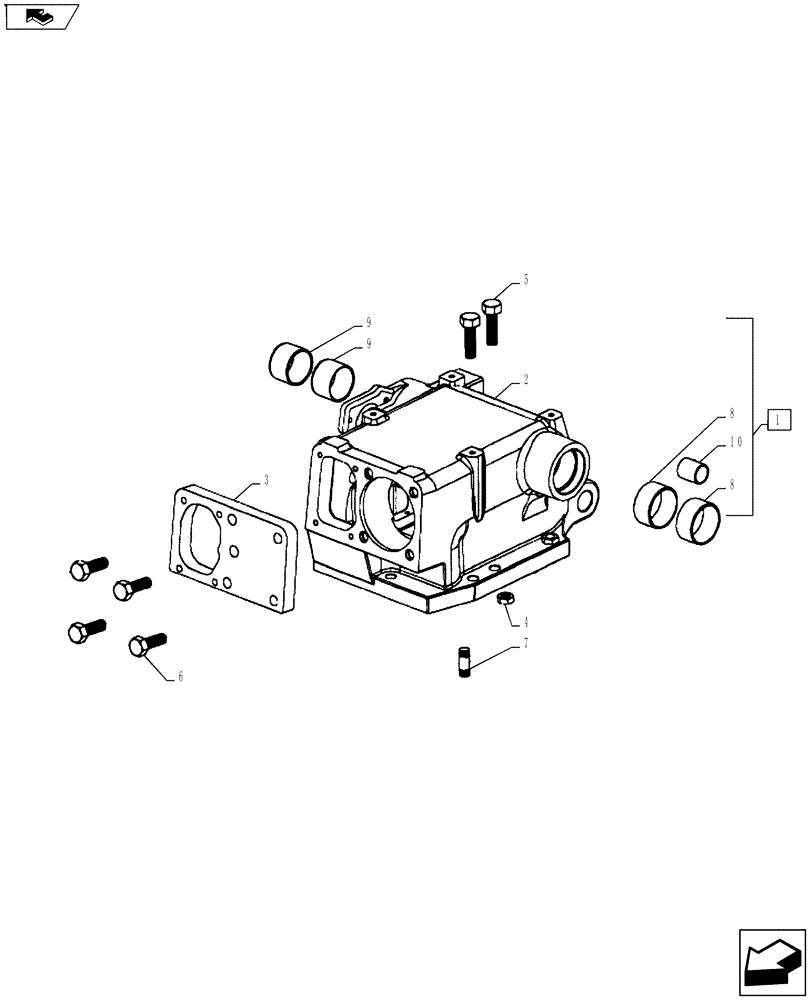

Запчасти Case IH FARMALL 65A (35.110.01) - LIFT HOUSING (35) - HYDRAULIC SYSTEMS

1

87568653

HOUSING

Hydraulic Lift, Includes Ref. 2, 8-13

1шт.

2

87568654

HOUSING

Power Lift Housing

1шт.

3

84404762

COVER

Cover, Lift Body

1шт.

4

18712121

NUT

Hex., M14 x 1.5

3шт.

5

15860124

BOLT,Hex, M14 x 1.5 x 50mm, Cl 8.8

M14x1.5x50 Full 8.8 Dac Din

4шт.

6

5133463

BOLT,Hex, M14 x 1.5 x 45mm, Cl 8.8

Cap Hex., M14 x 1.5 x 45

4шт.

7

13555630

STUD

M14 x 40

3шт.

8

5133436

BUSHING,55.1mm ID x 60.16mm OD x 30mm L

Rocker Shaft, LH

2шт.

9

5125280

BUSHING

Rocker Shaft, RH

2шт.

10

5144284

BUSHING,25.02mm ID x 28.98mm OD x 34.5mm L

Bimetallic

2шт.

11

87633783

PLATE

Plate Steel, Not Illustrated

1шт.

12

4858606

SEAL,10.2mm ID x 16mm OD x 1mm Thk

Cppper Rectangular. M10.2x14x1. Not Illustrated

2шт.

13

86528768

HEX SOC SCREW,M10 x 20mm, Cl 12.9

Hex Soc M10x20 Full 12.9 Blo, Not Illustrated

2шт.
