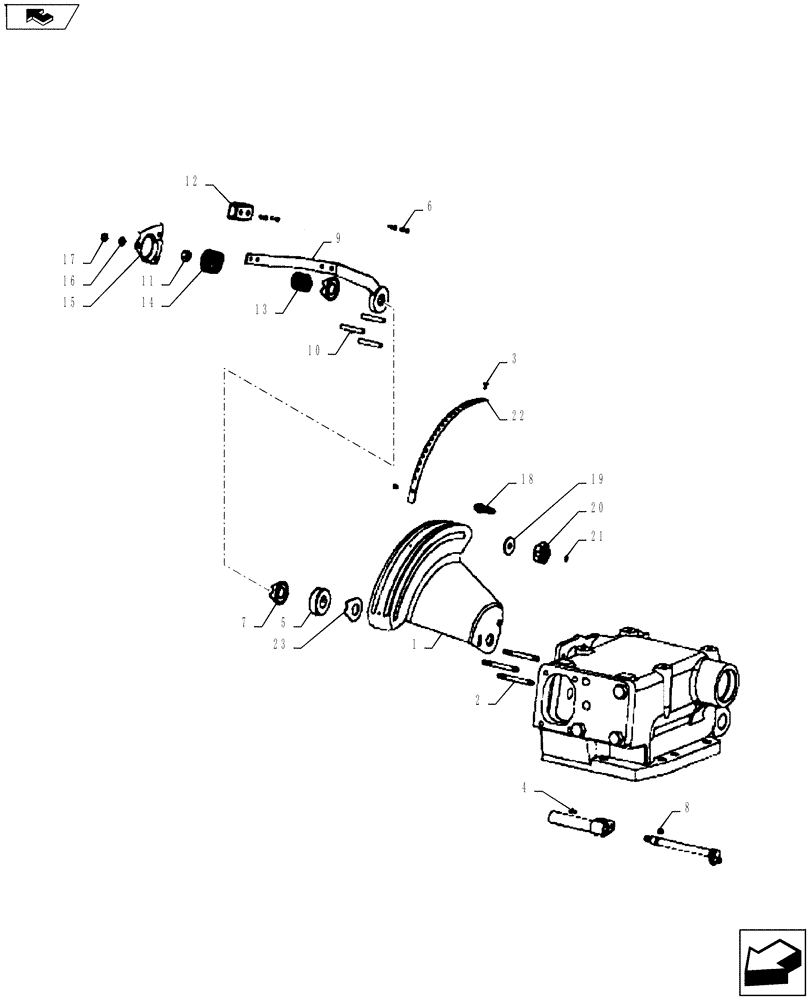

Запчасти Case IH FARMALL 65A (35.108.01) - HITCH CONTROL LEVER (35) - HYDRAULIC SYSTEMS

1

82824115

SECTOR

Control Lever

1шт.

2

13518021

STUD,M8 x 70mm L

M8 x 18

3шт.

3

87703329

RIVET,Pop, 3.15mm OD x 9mm L

Rivet, Sector Plate

3шт.

4

14721010

KEY,4mm x 4mm x 14mm

1шт.

5

87393512

HUB

1шт.

6

15919407

SCREW,Cross Flat Hd, M6.3 x 16

2шт.

7

5165246

PLATE

Central

1шт.

8

10617610

KEY,5mm x 5mm x 10mm

1шт.

9

82826692

LEVER

Position Control

1шт.

10

5117204

SPACER,8.5mm ID x 12mm OD x 51.5mm L

3шт.

11

12575615

LOCK NUT

Nyloc

1шт.

12

82834066

KNOB

Lift Control Lever, Black

1шт.

13

4952761

SPRING,Compression, 34mm OD x 25.5mm L

1шт.

14

4973370

SPRING,Compression, 44mm OD x 38mm L

1шт.

15

5133459

PLATE

Control Sensor

1шт.

16

10571774

LOCK WASHER,8.1mm ID x 14.8mm OD x 2mm Thk

3шт.

17

16100814

NUT,M8, Cl 8, DAC

3шт.

18

82824114

PIN,10mm OD x 41mm L

1шт.

19

12644301

WASHER,M10 x 35 x 3

1шт.

20

82834062

KNOB

1шт.

21

11065576

SNAP RING,M7, Ext

1шт.

22

87370389

DECAL

Sector Plate

1шт.

23

5165184

PLATE

2шт.
