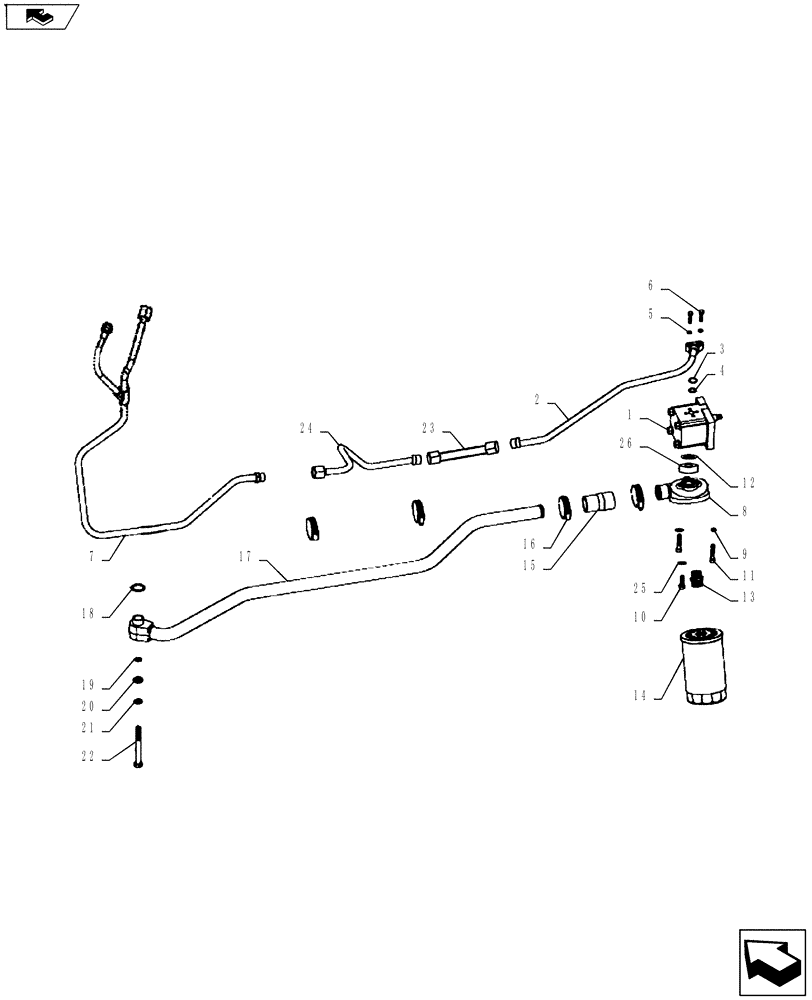

Запчасти Case IH FARMALL 65A (35.100.01[01]) - HYDRAULIC LIFT CIRCUIT - FRONT (35) - HYDRAULIC SYSTEMS

1

84150306

HYDRAULIC PUMP,14.3 CC

Front Half of Tandem Pump Shown

1шт.

2

84150299

RIGID TUBE

Delivery, Front

1шт.

3

44015841

BACK-UP RING,19mm ID x 20mm OD x 2.05mm Thk

Antiextrusion

3шт.

4

14457180

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

3шт.

5

10571579

LOCK WASHER,M6

2шт.

6

10902821

SCREW,Hex, M6 x 30mm, Cl 8.8

2шт.

7

87377456

HYD TUBE

Delivery Rear

1шт.

8

84150305

BRACKET

Oil, For This Application Replacing 5129631, Still Avail

1шт.

9

2852057

SEALING WASHER,M8 x 12 x 1 Thk

SEAL WASHER

2шт.

10

14306521

HEX SOC SCREW,M8 x 1.25 x 30mm, Cl 8.8

1шт.

11

14306821

HEX SOC SCREW,M8 x 45mm, Cl 8.8

2шт.

12

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

13

5116767

ADAPTER,1-1/8" - 16 x M25 X 1.5

Oil Filter Cartridge

1шт.

14

87391716

FILTER

Hydraulic Oil

1шт.

15

84186972

HOSE

Hydraulic Oil

1шт.

16

13000690

HOSE CLAMP,32mm - 50mm, Worm Gear

Worm Drive

4шт.

17

84150298

RIGID TUBE

Suction

1шт.

18

14463480

O-RING,28.17mm ID x 3.53mm Width

1шт.

19

14457080

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

20

595892

WASHER,12mm ID x 24mm OD x 4mm Thk

12

1шт.

21

10517079

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

12

1шт.

22

15974621

BOLT,Hex, M12 x 1.5 x 110mm, Cl 8.8

1шт.

23

87385063

HYD TUBE

Delivery, Intermediate

1шт.

24

87398162

HYD TUBE

, Serial Range: Rear-Intermediate

1шт.

25

10569479

LOCK WASHER,10.2mm ID x 16mm OD x 2.5mm Thk

M10

2шт.

26

84186975

SPACER

Support Filter

1шт.
