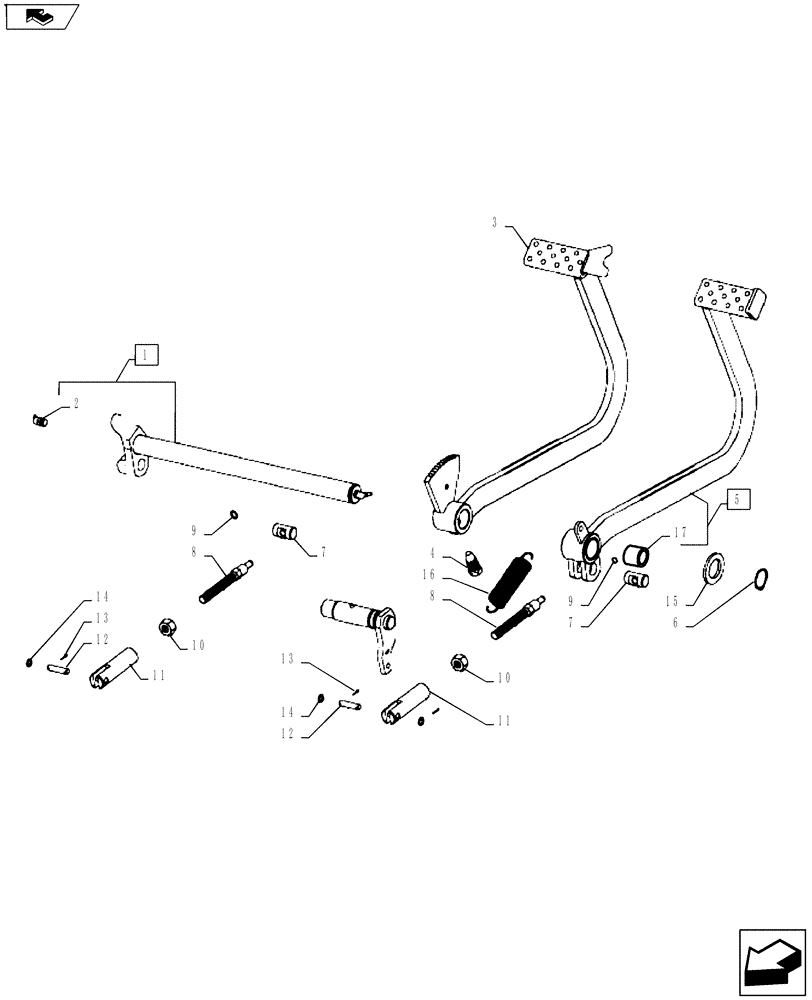

Запчасти Case IH FARMALL 65A (33.120.02) - BRAKE PEDALS AND LINKAGE (33) - BRAKES & CONTROLS

1

82825612

SHAFT

Assy., Brake Pedals Includes Ref. 2

1шт.

2

13407811

LUBE NIPPLE,Angled - 45 Degree, M10 x 1 x 27.00mm

2шт.

3

87377443

PEDAL

LH

1шт.

4

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16 x 1.5 x 32, Conical

1шт.

5

87569984

BRAKE

RH, Includes Ref. 17

1шт.

6

562108

WASHER,28.5mm ID x 45mm OD x 4mm Thk

1шт.

7

4959413

PIN,18mm OD x 32mm L

Push Rod

2шт.

8

82834164

ROD

Brake Control

2шт.

9

11065676

SNAP RING,M8, Ext

2шт.

10

10791211

THIN NUT,Thin, M12 x 1.5, Cl 04

2шт.

11

4959411

CLEVIS

Brake Control Push Rod

2шт.

12

4959412

PIN,8mm OD x 34mm L

Fork

2шт.

13

10734401

COTTER PIN,M2 x 22

4шт.

14

12642701

WASHER,8.15mm ID x 12mm OD x 1mm Thk

4шт.

15

11067676

SNAP RING,M28, Ext

1шт.

16

559627

SPRING

DO = 25, DO = 3.4, L = 104.8

1шт.

17

82824387

BUSHING,28mm ID x 32.09mm OD x 20.25mm L

1шт.
