Запчасти Case IH FARMALL 65A (33.120.01) - BRAKE DISCS (33) - BRAKES & CONTROLS

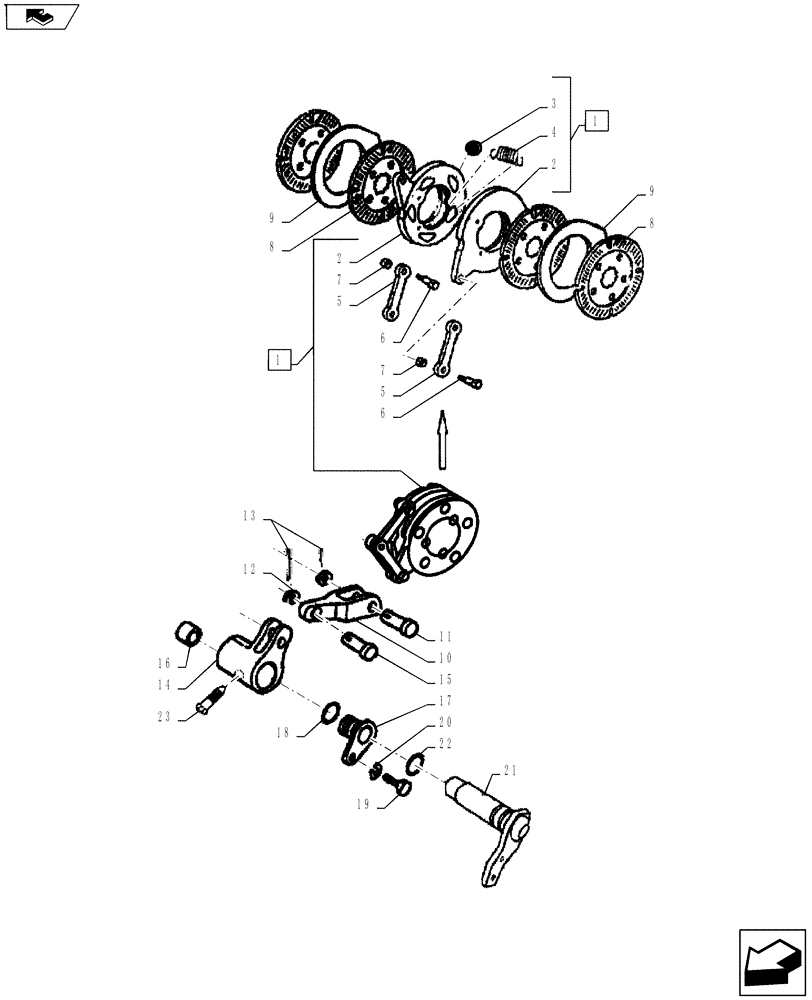

Схема запчастей Case IH FARMALL 65A - (33.120.01) - BRAKE DISCS (33) - BRAKES & CONTROLS
5
23
4
12
17
3
home
6
16
7
1
2
19
7
9
2
15
8
9
21
5
14
20
8
1
10
11
22
6
18
13

Артикул

Название

Примечание

Количество

1

5195415

BRAKE PACKAGE

Assy., Includes Ref. 2-7, Alternate Part {5119328}

2шт.

2

5086161

BRAKE DISC

Thrust (Actuator)

4шт.

3

20063060

BALL,M22

10шт.

4

5086612

SPRING,20.4mm OD x 24mm, Free Length

6шт.

5

5086609

LEVER

4шт.

6

5086610

PIN,12.3mm OD x 40.7mm L

4шт.

7

5086611

NUT,3/8"-24 UNF

4шт.

8

87313939

BRAKE DISC,41mm ID x 165.25mm OD x 4.6mm Thk

4шт.

8

87313939

BRAKE DISC,41mm ID x 165.25mm OD x 4.6mm Thk

, Serial Range: -`0

4шт.

Serial Number Break Required

1шт.

8

84488284

BRAKE DISC

Brake Disc., Workmaster 75A, Serial Range: -`0

4шт.

REQUIRES SERIAL NUMBER BREAK - NOT IN PRODUCTION YET

1шт.

8

84488284

BRAKE DISC

Brake Disc., Workmaster 75A, Serial Range: -`0

4шт.

Serial Number Break Required

1шт.

8

87313939

BRAKE DISC,41mm ID x 165.25mm OD x 4.6mm Thk

4шт.

9

5119327

BRAKE DISC,94.3mm ID x 171.1mm OD x 2.65mm Thk

Fixed, Plate

2шт.

10

5145471

LINK

Inner Brake Control

2шт.

11

5145473

PIN

Brake Pivot Hinge

2шт.

12

5111199

WASHER,11.2mm ID x 17mm OD x 1.5mm Thk

5шт.

13

10796404

COTTER PIN,M3.2 x 18

2шт.

14

5145472

LEVER

Inner Brake Control

2шт.

15

5145475

PIN

Brake Control Inner Level

2шт.

16

567437

BUSHING,24.06mm ID x 29.03mm OD x 16mm L

Brake Lever Inner

2шт.

17

5145474

SUPPORT

Brake Lever Control

2шт.

18

14458180

O-RING,0.103" Thk x 1.174" ID, -123, Cl 5, 75 Duro

2шт.

19

16043421

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

Bolt, Replaced By 120104

1шт.

20

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

Helical Spr. 8 C72 ZNM

1шт.

21

82824433

PIN

Outer Brake Control

2шт.

22

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

4шт.

23

4968813

BOLT,Hex, M16 x 1.5 x 32mm

M16 x 1. 5x 32, Conical, Fork Lever

2шт.

Выбрано товаров: 30
