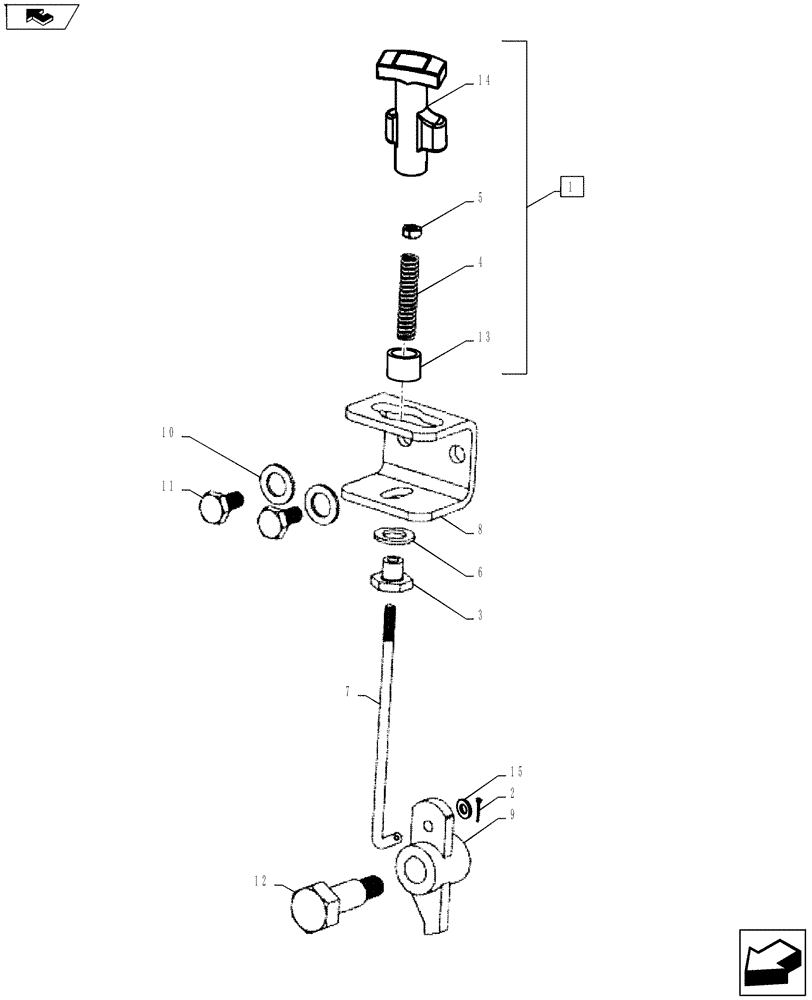

Запчасти Case IH FARMALL 65A (33.110.01) - PARKING BRAKE CONTROL (33) - BRAKES & CONTROLS

1

84293171

KNOB

Parking

1шт.

2

10734401

COTTER PIN,M2 x 22

1шт.

3

82822977

BOLT,M14 x 1.5 x 11mm

M14 x 1.5, Parking Brake

1шт.

4

82822974

SPRING

Parking Brake

1шт.

5

82824279

NUT

Parking Brake Rod, M6 x 1

1шт.

6

12646001

WASHER,14.4mm ID x 24mm OD x 2mm Thk

2шт.

7

82825614

ROD

Parking Brake

1шт.

8

82825527

BRACKET

Parking Brake

1шт.

9

82825615

PAWL

Parking Brake

1шт.

10

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

2шт.

11

15970524

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

12

82825621

PIN

Parking

1шт.

13

82822973

BUSHING

Parking Brake

1шт.

14

NS

NOT SERVICED

Knob, Parking Brake (84293172)

1шт.

15

12649601

WASHER,6.15mm ID x 11.5mm OD x 2.5mm Thk

M6.5 x 11.5 x 2.5

1шт.
