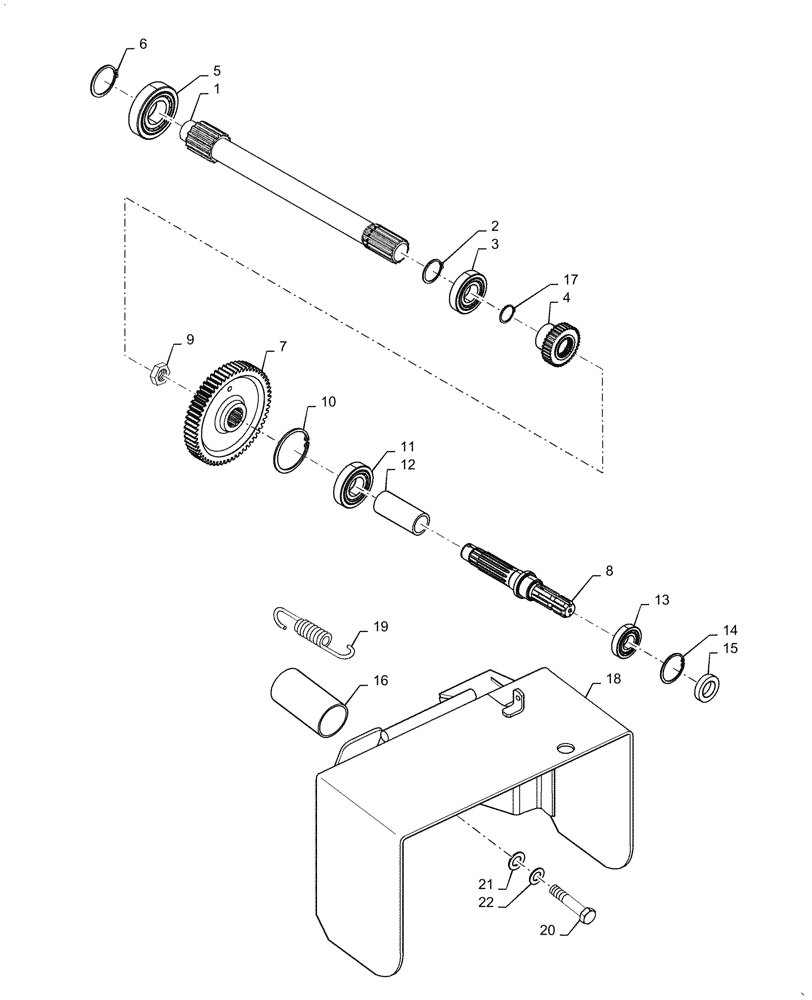

Запчасти Case IH FARMALL 65A (31.110.02) - PTO - SHAFTS AND GEARS (31) - IMPLEMENT POWER TAKE OFF

1

4950933

SHAFT

Drive Gear PTO

1шт.

2

11067876

SNAP RING,M30, Ext

2шт.

3

20685450

BALL BEARING,30 mm ID x 62 mm OD x 16 mm

1шт.

4

87377449

COUPLING,10T

PTO Shaft

1шт.

5

4950845

ROLLER BEARING,40 mm ID x 80 mm OD x 18 mm

roller bearing

1шт.

6

11068876

SNAP RING,M40, Ext

1шт.

7

4950932

DRIVEN GEAR

PTO Control

1шт.

8

84251091

PTO SHAFT

Driven, Old

1шт.

8

84575114

PTO SHAFT

Driven, New

1шт.

9

5159091

RING NUT

1шт.

10

11061976

SNAP RING,M80, Int

1шт.

11

24974300

ROLLER BEARING,35 mm ID x 80 mm OD x 21 mm

Strg. Column Upper Shaft

1шт.

12

562153

SPACER

36 x 45 x 95

1шт.

12

84575115

SPACER

36 x 45 x 89

1шт.

13

20705250

BALL BEARING,35mm ID x 72mm OD x 17mm W

1шт.

14

11061576

SNAP RING,M72, Int

1шт.

15

84216795

OIL SEAL

Single Lip, Stamped 45-70-14/17, Old

1шт.

15

84552375

SEAL

PTO Shaft, New

1шт.

16

5102349

GUARD

PTO Shaft

1шт.

17

11058476

SNAP RING,M26, Int

1шт.

18

87383333

SHIELD

PTO

1шт.

19

87363141

SPRING

1шт.

20

16043321

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

21

10516674

LOCK WASHER,M8

2шт.

22

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.
