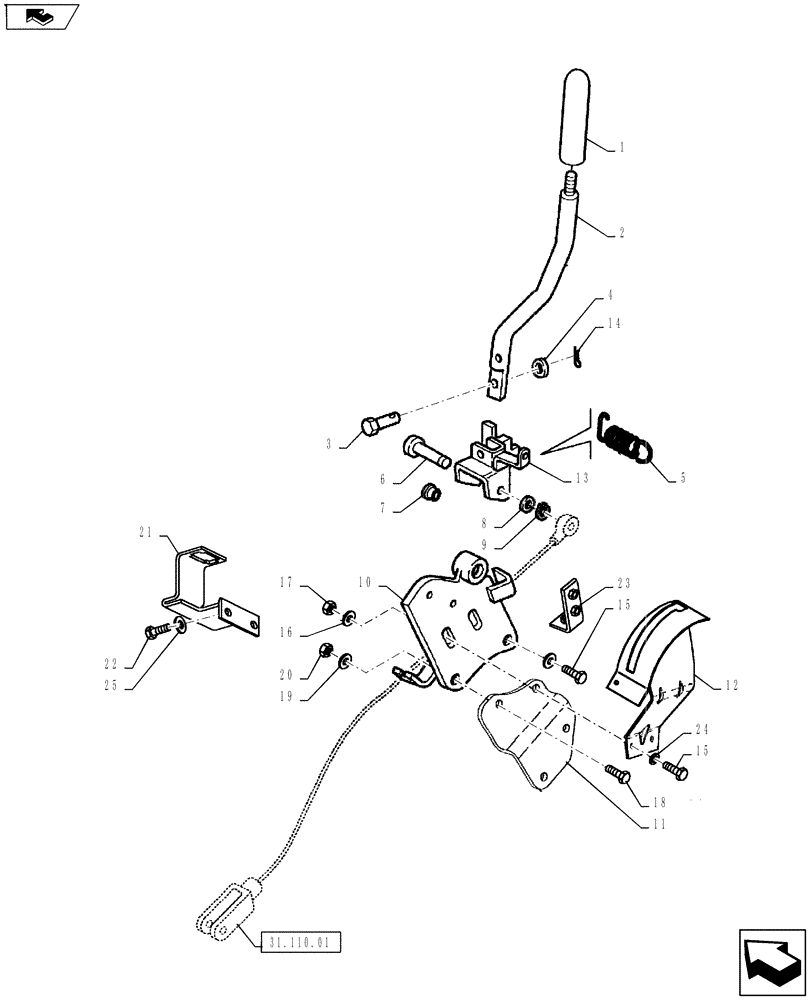

Запчасти Case IH FARMALL 65A (31.101.01) - PTO CONTROL LEVER (31) - IMPLEMENT POWER TAKE OFF

1

82825509

KNOB

1шт.

2

87391383

LEVER

1шт.

3

84347410

PIN

Pin

1шт.

4

12638521

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

1шт.

5

5171729

SPRING

1шт.

6

5171733

PIN,11.98mm OD x 48mm L

1шт.

7

5171734

BUSHING,12mm ID x 20mm OD x 7mm L

2шт.

8

14496721

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

9

11066076

SNAP RING,M12, Ext

1шт.

10

87391379

SUPPORT

1шт.

11

87383310

SUPPORT

1шт.

12

87558051

GUIDE

1шт.

13

87548120

LEVER

1шт.

14

10766301

COTTER PIN,M2 x M15

1шт.

15

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

2шт.

16

10571779

LOCK WASHER,Helical Spring, 8.10mm ID x 14.80mm OD x 2.00mm, ZNM

2шт.

17

16100811

NUT,Hex, M8, 6.80mm, Cl 8, ZND

2шт.

18

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

19

10571979

LOCK WASHER,M12

1шт.

20

16105014

LOCK NUT,M12 x 1.25

1шт.

21

87392040

SUPPORT

PTO Control Switch

1шт.

22

10902321

SCREW,Hex, M6 x 18mm, Cl 8.8, Full Thd

2шт.

23

87558055

SUPPORT

PTO Guide

1шт.

24

14496501

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

25

10571579

LOCK WASHER,M6

2шт.
