(27.110.02[02]) - DIFFERENTIAL LOCK BRAKES

Запчасти Case IH FARMALL 65A (27.110.02[02]) - DIFFERENTIAL LOCK BRAKES (27) - REAR AXLE SYSTEM

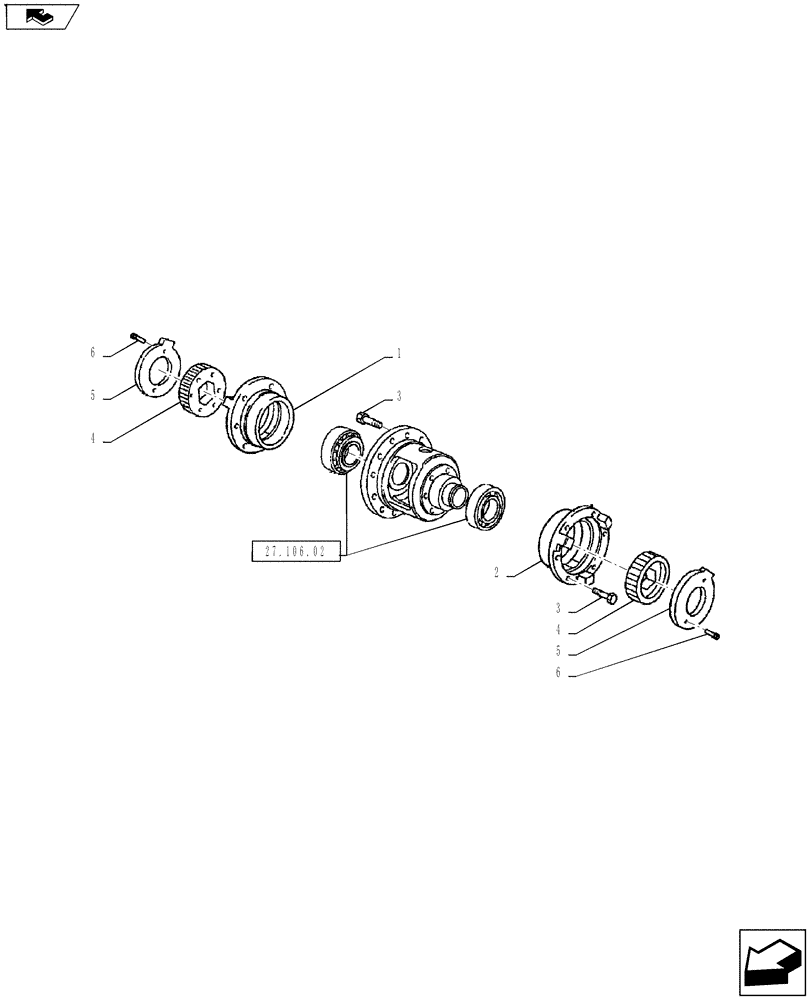

Схема запчастей Case IH FARMALL 65A - (27.110.02[02]) - DIFFERENTIAL LOCK BRAKES (27) - REAR AXLE SYSTEM
home
4
1
5
5
27.106.02
3
4
6
2
3
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84310211

SUPPORT

LH Diff. Brake

1шт.

2

84310210

SUPPORT

RH Diff. Brake

1шт.

3

11306921

SCREW,Hex, M10 x 1.25 x 30mm, Cl 8.8, Full Thd

ZND DIN

12шт.

4

82824282

LOCK NUT

Alternate Part 5087673

2шт.

5

5087674

LOCKING RING

Alternate Part 5124641

2шт.

6

5124642

HEX SOC SCREW,FLAT, M8 x 1.25 x 20mm, Cl 8.8

Allen, M8 x 20

4шт.
