Запчасти Case IH FARMALL 65A (27.110.01) - DIFFERENTIAL LOCK PEDAL (27) - REAR AXLE SYSTEM

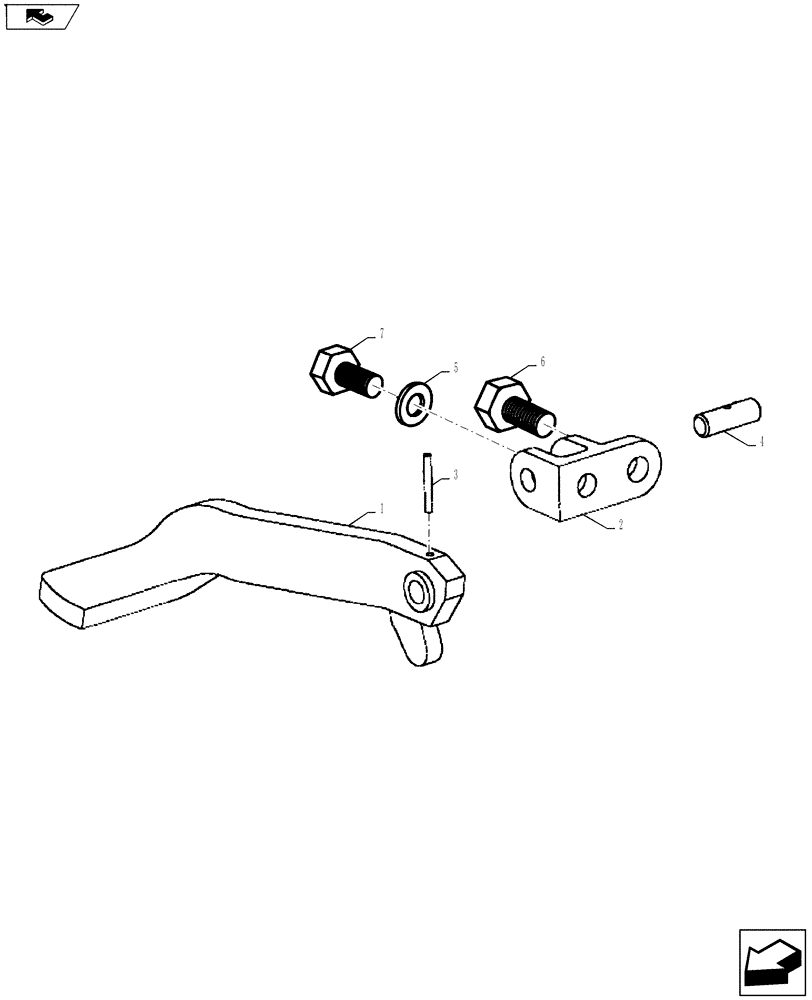

Схема запчастей Case IH FARMALL 65A - (27.110.01) - DIFFERENTIAL LOCK PEDAL (27) - REAR AXLE SYSTEM
home
4
6
2
5
7
3
1

Артикул

Название

Примечание

Количество

1

82827085

PEDAL

Differential Lock Assy.

1шт.

2

82827066

SUPPORT

Differential Lock Control Pedal

1шт.

3

82824380

PIN,3.3mm OD x 26mm L, Slotted

Roll

1шт.

4

567360

PIN,10mm OD x 33mm L

1шт.

5

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

M10 x 17.7 x 2.5

1шт.

6

15540321

SCREW,Hex, M12 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

7

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

1шт.

Выбрано товаров: 7
