Запчасти Case IH FARMALL 65A (27.106.02) - DIFFERENTIAL (27) - REAR AXLE SYSTEM

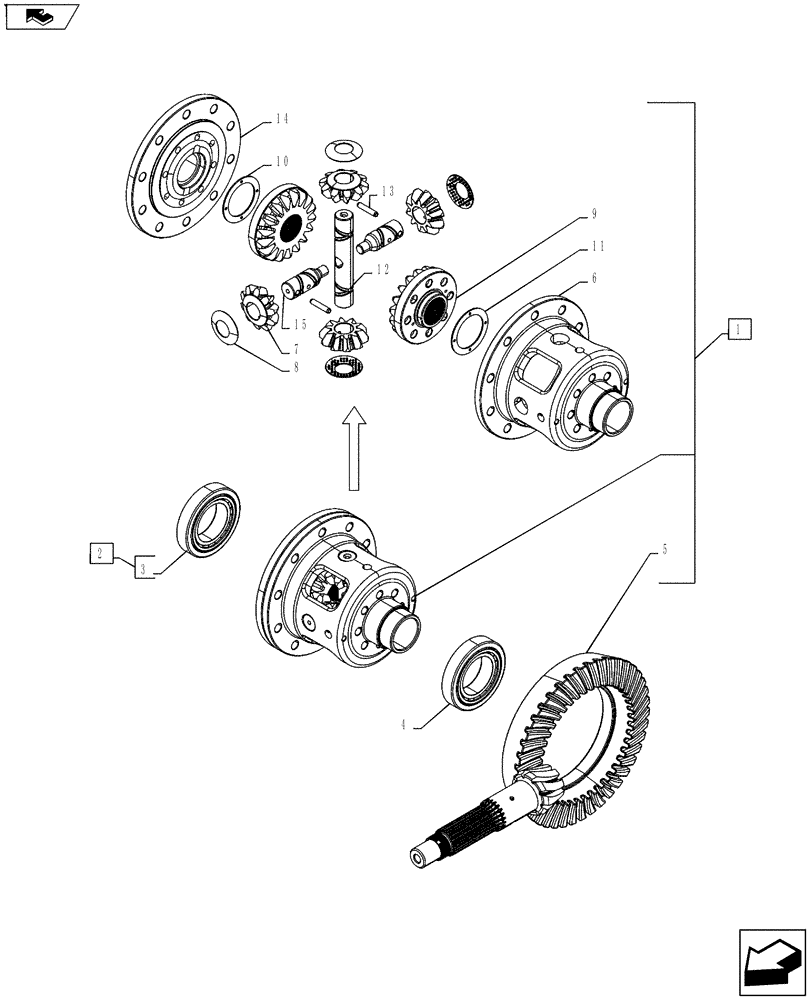

Схема запчастей Case IH FARMALL 65A - (27.106.02) - DIFFERENTIAL (27) - REAR AXLE SYSTEM
6
4
1
14
11
3
2
7
home
9
12
13
15
5
10
8

Артикул

Название

Примечание

Количество

1

87695942

DIFFERENTIAL ASSY

Kit, Includes Ref. 5-15

1шт.

2

84415577

Roller, Taper Org, Includes Ref. 3

1шт.

3

84415582

Roller, Tapered

1шт.

4

26799980

BEARING ASSY,Roller, 50mm ID x 90mm OD x 21.75mm W

RHD = 50 x 90 x 21.75

1шт.

5

82824504

BEVEL GEAR

Set Crown Wheel and Pinion, Ratio 14:47

1шт.

6

87554480

DIFFERENTIAL GEAR

RH

1шт.

7

87749521

GEAR

Differential Pinion 13T

4шт.

8

4987975

THRUST WASHER,24mm ID x 48mm OD

Pinion

4шт.

9

87749520

GEAR

Side RH, Differential

1шт.

10

87749519

GEAR

Side LH, Differential

1шт.

11

82824370

SET OF THRUST WASHER

2шт.

12

87554482

SHAFT

1шт.

13

14168770

ROLL PIN

Slotted

2шт.

14

87554481

DIFFERENTIAL GEAR

LH

1шт.

15

87554483

PIN

Differential Small

2шт.

Выбрано товаров: 15
