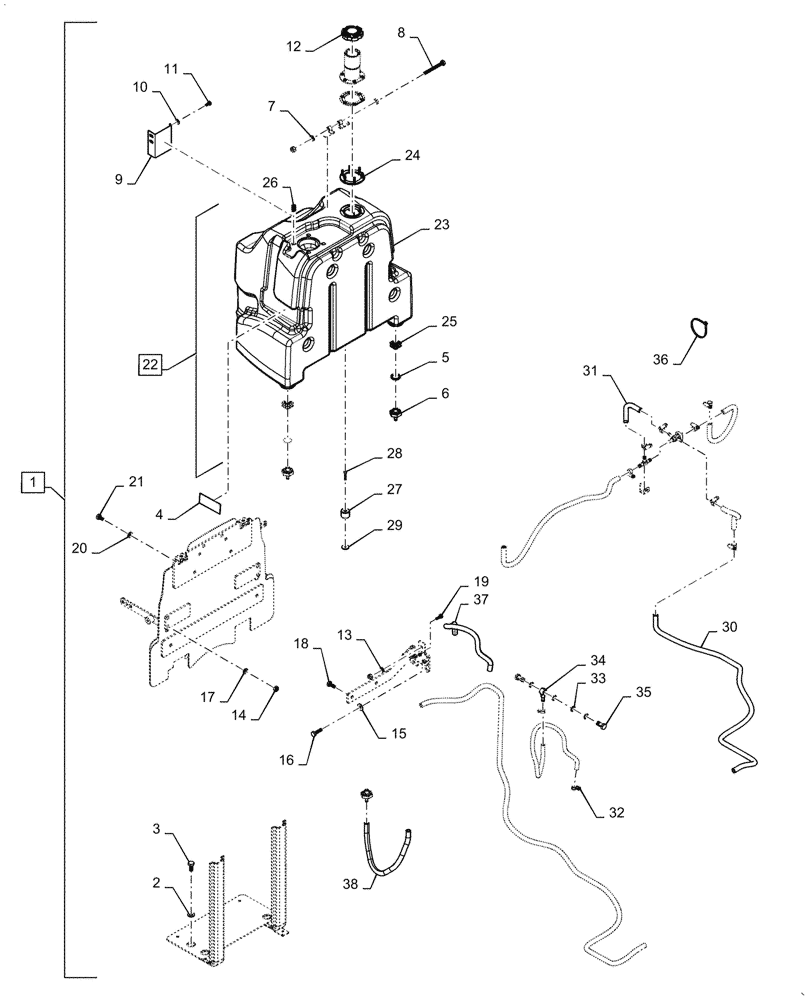

Запчасти Case IH FARMALL 60A (10.216.AI[05]) - FUEL TANK (10) - ENGINE

1

NS

NOT SERVICED

Fuel Tank, Order 2 - 38

1шт.

2

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

3

14331021

HEX SOC SCREW,M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

4

84168724

PAD

Fuel Tank

7шт.

5

14463180

O-RING,0.921" ID x 0.139" Width

2шт.

6

84426792

DRAIN PLUG

Fuel Tank

1шт.

7

12638601

WASHER,M10 x 18 x 2

2шт.

8

47898372

BOLT

Neck, Fuel Tank

1шт.

9

87349473

BRACKET

Support, Fuel Tank

1шт.

10

11193879

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

2шт.

11

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

2шт.

12

87363108

CAP

Assy, Fuel Tank without Lock

1шт.

13

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

14

12164711

NUT,M10 x 1.25, Cl 8

5шт.

15

12646801

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.

16

11106621

BOLT,Hex, M10 x 35mm, Cl 8.8, Full Thd

4шт.

17

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

18

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

19

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

20

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

21

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

22

47750177

TANK

Fuel Assy, Incl 23 - 26

1шт.

23

NS

NOT SERVICED

Fuel Tank, Incl in 22

1шт.

24

NSS

NOT SOLD SEPARAT

Insert, Neck Fuel Tank, Incl in 22

1шт.

25

NS

NOT SERVICED

Insert, Fuel tank Drain, Incl in 22

2шт.

26

87621597

THREADED INSERT

4шт.

27

84382506

GROMMET

Bushing, Rubber, Fuel Tank

2шт.

28

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

1шт.

29

NSS

NOT SOLD SEPARAT

Washer, Incl in 30

1шт.

30

47688249

TUBE

Fuel

1шт.

31

47804471

TUBE

Fuel

1шт.

32

13000190

HOSE CLAMP,M10-16

Worm Gear

9шт.

33

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

4шт.

34

47913675

FITTING

Banjo

2шт.

35

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

36

14560287

CABLE TIE,207.00mm L

2шт.

37

47868416

TUBE

Fuel

1шт.

38

47688249

TUBE

Fuel

1шт.
