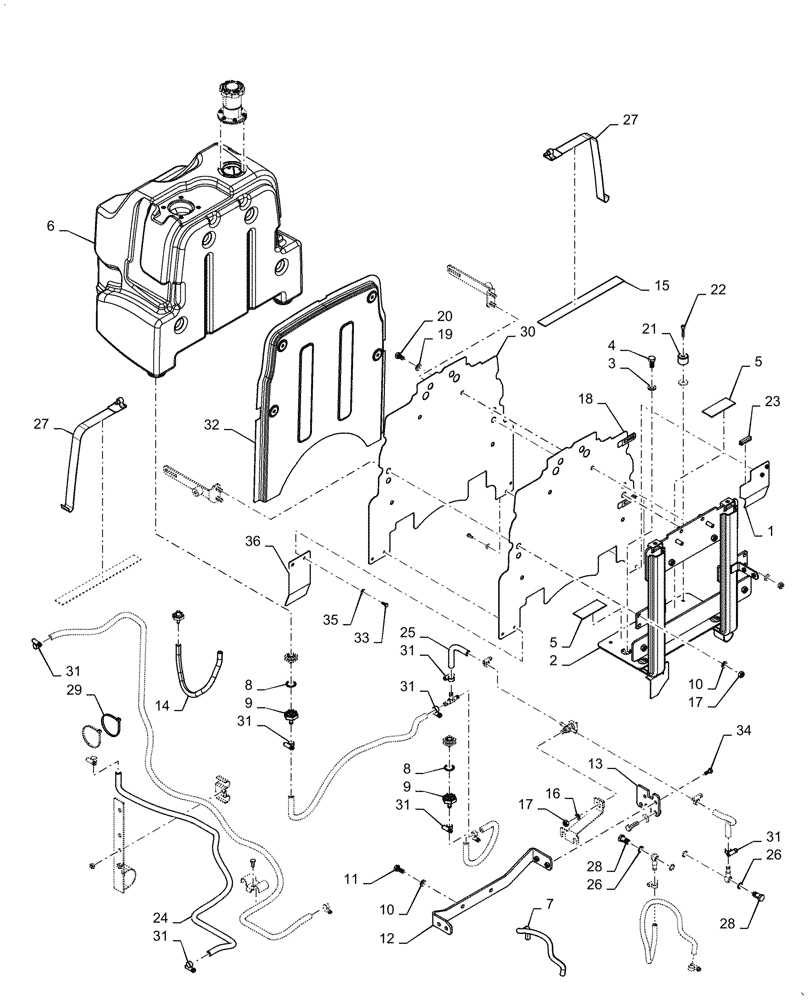

Запчасти Case IH FARMALL 60A (10.216.AI[03]) - FUEL TANK (10) - ENGINE

1

47814591

HEAT SHIELD

Bracket Assy, LH

1шт.

2

47814568

BRACKET

Assy, H Frame

1шт.

3

14496701

WASHER,13.00mm ID x 24.00mm OD x 2.50mm, CST, ZND

4шт.

4

14331021

HEX SOC SCREW,M12 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

5

84168724

PAD

Fuel Tank

7шт.

6

47750177

TANK

Assy, Fuel

1шт.

7

47868416

TUBE

Fuel

1шт.

8

14463180

O-RING,0.921" ID x 0.139" Width

Seal

2шт.

9

82824925

ADAPTER

Fuel Outlet

2шт.

10

11190579

BELLEVILLE WASHER,M10 Bolt Size x 20mm OD x 2.3mm Thk

6шт.

11

11106221

SCREW,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

12

47816811

BRACKET

Assy Prefilter Updraft

1шт.

13

47738842

BRACKET

Assy Prefilter

1шт.

14

47688249

TUBE

Fuel

1шт.

15

87732465

PAD

Fuel Tank Side Bracket

1шт.

16

10571879

LOCK WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

1шт.

17

12164711

NUT,M10 x 1.25, Cl 8

5шт.

18

47814536

BRACKET

Shield Assy Firewall

1шт.

19

14496601

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

20

15970521

BOLT,Hex, M10 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

21

84382506

GROMMET

Bushing Rubber Fuel Tank

2шт.

22

14305521

HEX SOC SCREW,M6 x 30mm, Cl 8.8, Full Thd

1шт.

23

82000807

MOLDING

Channel Fuel Tank Abutment

1шт.

24

47688249

TUBE

Fuel

1шт.

25

47804471

TUBE

Fuel

1шт.

26

10257060

SEALING WASHER,16.3mm ID x 22mm OD x 1.5mm Thk

4шт.

27

82822772

WEATHERSTRIP

Protector Clamp Fuel Tank

2шт.

28

10184411

BANJO BOLT,M16 x 1.5 x 31mm, R50

2шт.

29

14560287

CABLE TIE,207.00mm L

Nylon Black

2шт.

30

47904129

SHIELD

Shield Heat Firewall

1шт.

31

13000190

HOSE CLAMP,M10-16

Worm Gear

14шт.

32

47723219

SEAL

Rubber Fire Wall

1шт.

33

10902221

BOLT,Hex, M6 x 16mm, CL 8.8

4шт.

34

16043521

SCREW,Hex, M8 x 22mm, Cl 8.8, Full Thd

2шт.

35

12646601

WASHER,6.15mm ID x 15mm OD x 1.5mm Thk

4шт.

36

47814590

HEAT SHIELD

Bracket Assy, RH

1шт.
